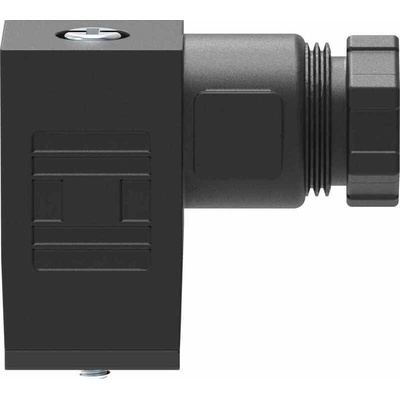

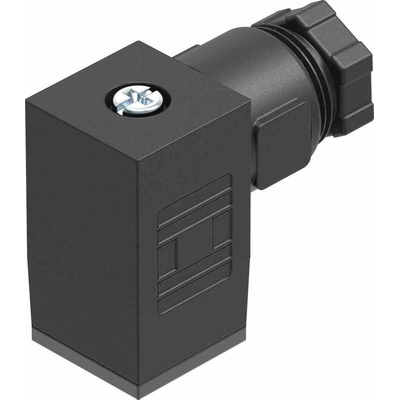

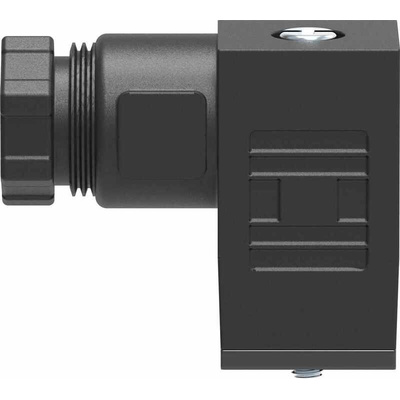

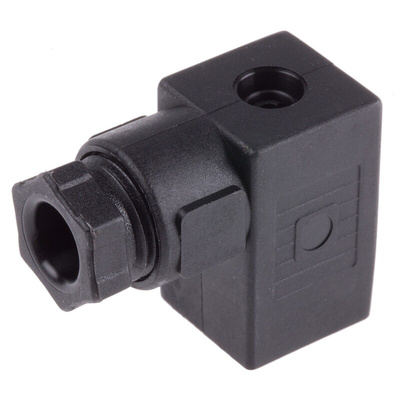

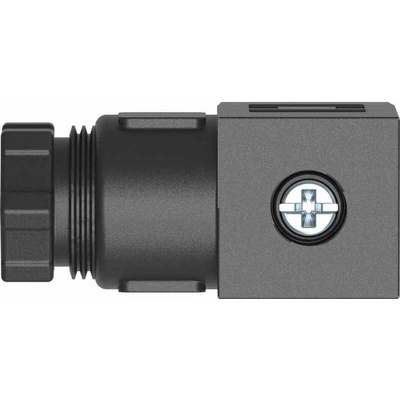

MSSD-EB, Festo MSSD 3P DIN 43650 C, Female Solenoid Connector, 250 V ac Voltage

Festo Pneumatic Solenoid Coil Connector, DIN Connector - MSSD Series - MSSD-EB

This pre-assembled solenoid coil connector from Festo is used to connect electrically controlled valves to pneumatic systems. Its seals are made from superior strength nitrile rubber. This material also has good resistance to abrasion and a higher than average resistance to oils, acids and hydraulic fluids. The component's plastic housing carries an IP65 (ingress protection) rating, meaning it's dust-tight and protected against jets of water. The coil can tolerate voltage surges or electromagnetic interference, which increases its operating life.

• For use with EB and N2 solenoid coil valves
• Nominal operating voltage of 300 V DC and 250 V AC
• Permissible current load of 6 A
• Surge strength of 4 kV
• Can be assembled in any position
• On solenoid valve with M2.5 central screw mounting type
• Ambient temperature range of -45°C to +90°C

Range Information

• The Festo MSSD series consists of valve plugs for self-assembly and suits valves with a wide range of solenoid coils
• Some components in this range feature insulation displacement technology to provide a fast and dependable connection that requires no wire stripping, soldering or specialised tools
