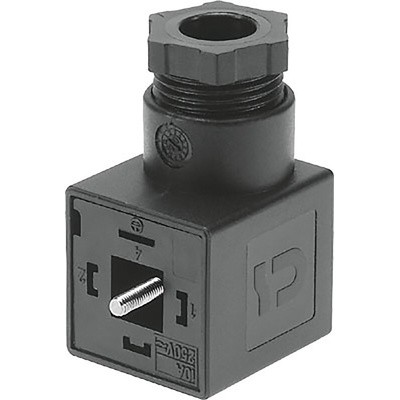

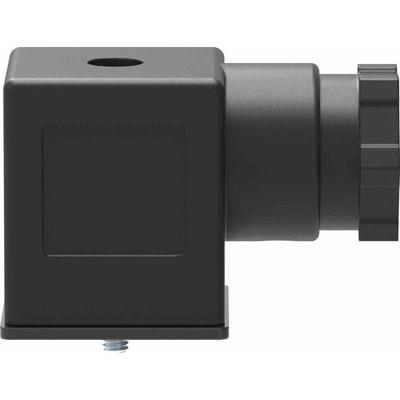

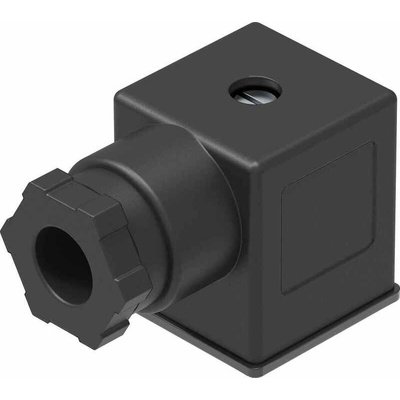

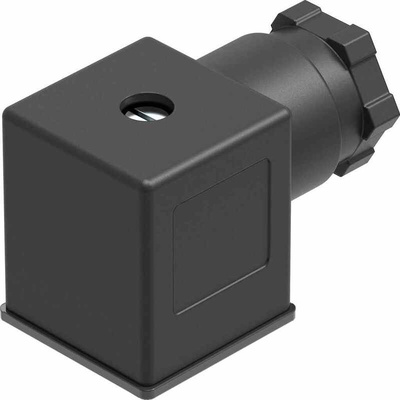

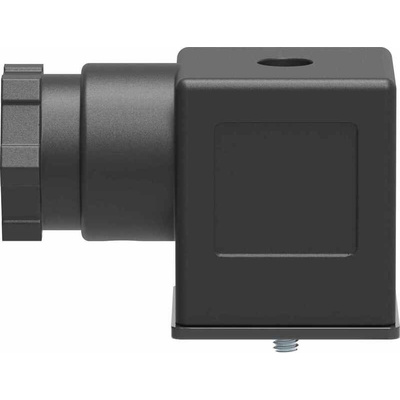

MSSD-N, Festo MSSD 3P DIN 43650 A, Female Solenoid Connector, 250 V ac Voltage

Festo Pneumatic Solenoid Coil Connector, 3P+E Plug Socket - MSSD series - MSSD-N

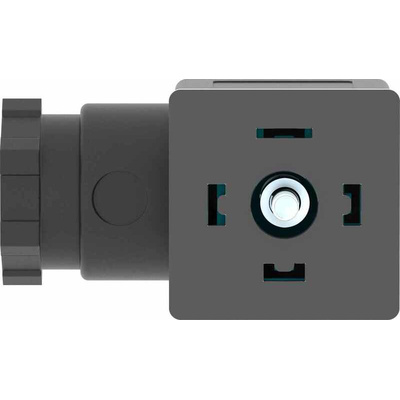

This 3P+E pneumatic solenoid coil connector allows you to couple the Festo valves in your pneumatic system to a reliable electrical power source. It's built to be compliant with EN 175301-803, the European standard regarding rectangular connectors. A robust build offers protection from nozzle-projected water and dust, meaning the connector keeps working even during industrial cleaning. The insert can be repositioned by 180° to make sure it matches your valve installation.

• 3P+E plug socket for use with MD-2 solenoid coil valves and MH-2 solenoid coil valves
• Maximum operating voltage of 24 V (DC), 250 V (AC)
• M20 cable gland connection
• Compatible with cable diameters of 8 mm to 10 mm
• Connection cross-sample

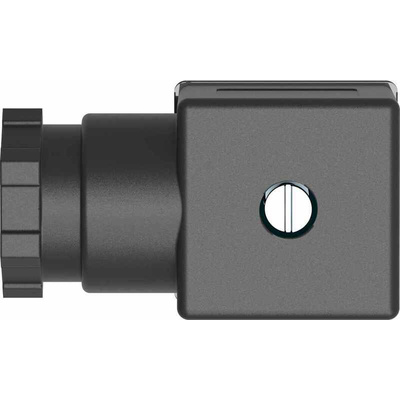

• M3 central screw mounting
• IP65 rating for protection against nozzle-projected dust and water
• Weight of 30 g
• Operating temperature range of -25°C to +80°C
• Contains PWIS (paint-wetting impairment substances)

Range Information

• Festo's MSSD series is a range of valve plugs for self-assembly MSSD connectors are compatible with type-A, type-B and type-C socket types, and with socket plug pattern ZB/ZC

Datasheet MSSD-N

Catalogue - MSSD-N
