ADN-12-25-I-P-A, Festo Pneumatic Cylinder - 536215, 12mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

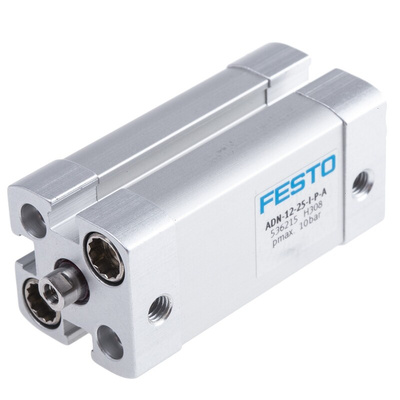

Festo Double-Acting Pneumatic Cylinder, 12mm Bore, 25mm Stroke - ADN-12-25-I-P-A

Want to save space when building your pneumatic system? With compact dimensions of 27.5 (height) x 27.5 (width) x 64.2mm (length), this double-acting pneumatic cylinder from Festo is up to 50% smaller than a standard cylinder. It's fitted with flexible polymer end cushioning which helps to reduce noise and vibration, and also extends the unit's service life. The cushioning doesn't need any adjustment, meaning the cylinder offers hassle-free performance. An operating temperature range of -20°C to +80°C makes this device suitable for heavy-duty industrial environments.

• Can move a load in two directions with efficiency and precision
• Low-friction design enables continuous operation
• Maximum operating pressure of 10 bar for versatility

Applications

• Factory automation
• Robotics
• Opening and closing safety doors

How should I mount this cylinder?

Like all of the cylinders in Festo's ADN series, this cylinder can be mounted either horizontally or vertically, depending on its intended use. You can also use optional accessories to mount this cylinder on a swivel bracket for free movement, in a foot to support high loads or in combination with other cylinders in more complex setups.
