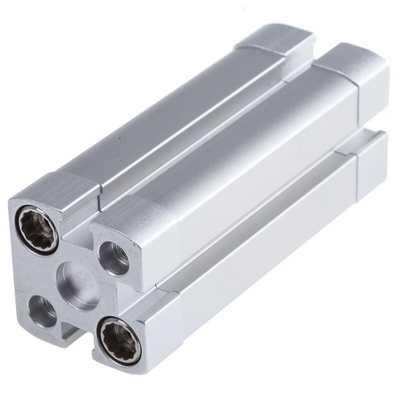

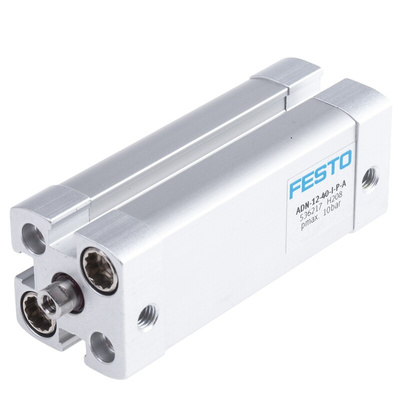

ADN-12-40-I-P-A, Festo Pneumatic Cylinder - 536217, 12mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, 40mm Stroke - ADN-12-40-I-P-A

Need to move a load in two directions? Use this pneumatic cylinder from Festo. It's double-acting, so it applies pressure on the extension and return stroke to increase control over movements. The cylinder is flush mounting and has a compact length of 79.2mm. This leaves more space on your pneumatic line to customise it with mounting accessories or combine it with other devices. Slots on the body mean it's easy to mount sensors to detect the piston's position, so handling and lifting tasks are carried out accurately.

• Anodised aluminium body and high-alloy steel piston rod make it resistant to corrosion
• Integrated cushioning rings to absorb residual energy and keep movements smooth in high-speed applications
• Cushioning is flexible, so no adjustment is necessary
• Operating pressure between 1 and 10 bar to maximise compatibility with systems and devices

Applications

• Robotics
• Industrial automation
• Lifts and hoists
• Plant machinery

What loads can this pneumatic cylinder handle?

This pneumatic cylinder typically handles forces at 6 bar of 51N on retraction and 6 bar of 68N on extension.
