ADN-12-5-I-P-A, Festo Pneumatic Cylinder - 536211, 12mm Bore, 5mm Stroke, ADN Series, Double Acting, Цилиндр

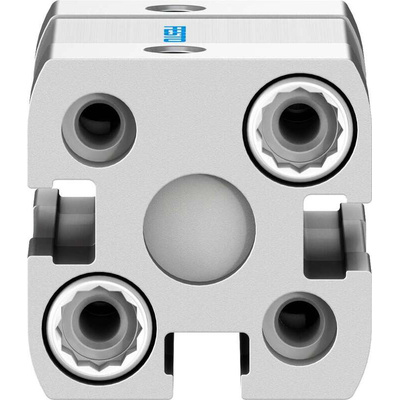

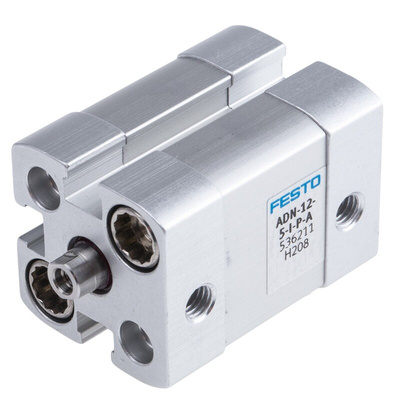

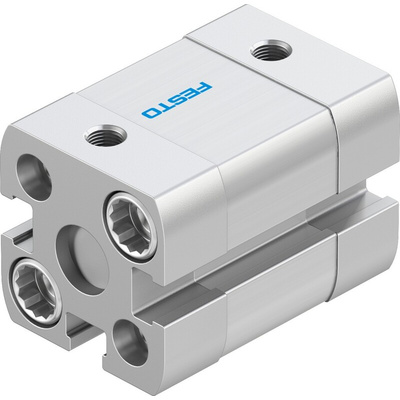

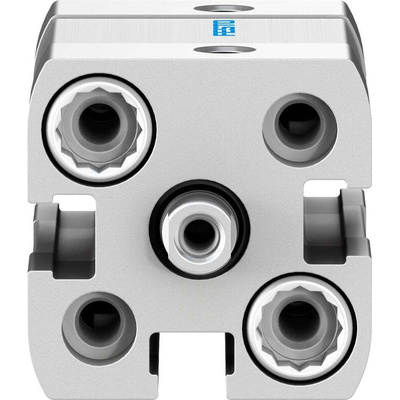

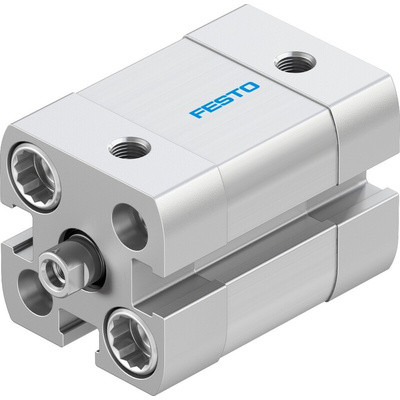

Festo Double-Acting Pneumatic Cylinder, 12mm Bore, 5mm Stroke - ADN-12-5-I-P-A

Use this double-acting pneumatic actuator from Festo when you want a small unit that delivers high performance. As it's fitted with two standard M5 ports, it can move a load in two directions with accuracy and precision. It's safe to use at temperatures anywhere between -20°C and +80°C, so is suitable for use in a wide range of harsh industrial environments. Thanks to its low-friction design, you can rely on this actuator to stand up well to continuous operation.

• Ends are cushioned with flexible polymer, reducing noise and vibration while helping to boost productivity
• Versatile option suitable for use at pressures up to 10 bar

Applications

• Robotics
• Factory automation
• Opening and closing gates and doors

What's the difference between a single-acting and a double-acting pneumatic cylinder?

Single-acting cylinders come fitted with a single port. Compressed air pushes the piston in one direction and a spring returns it when the pressure is released. A double-acting cylinder has two ports and uses the flow of compressed air to efficiently move the load in both directions.

FESTO ADN Series

Festo ADN/AEN

Festo Pneumatic Cylinders Operating Manual

ADN-12-5-I-P-A Specification Sheet
