ADN-16-25-I-P-A, Festo Pneumatic Cylinder - 536230, 16mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

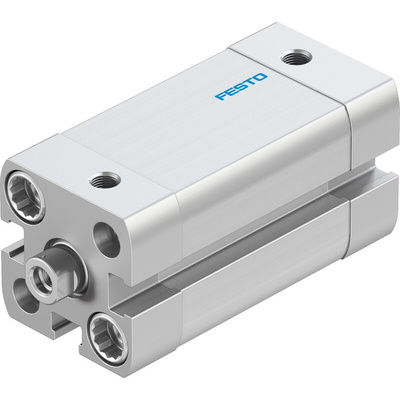

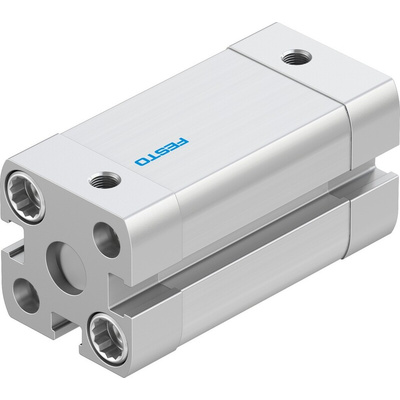

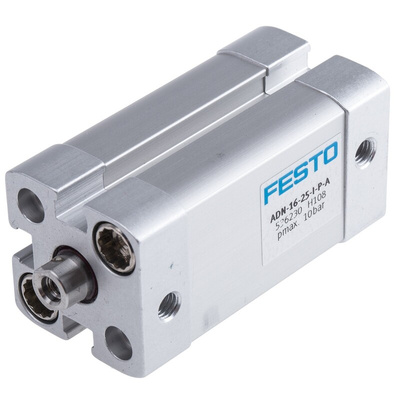

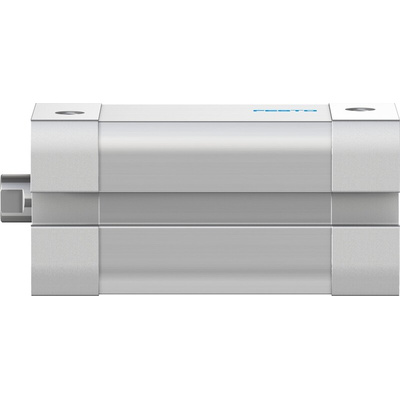

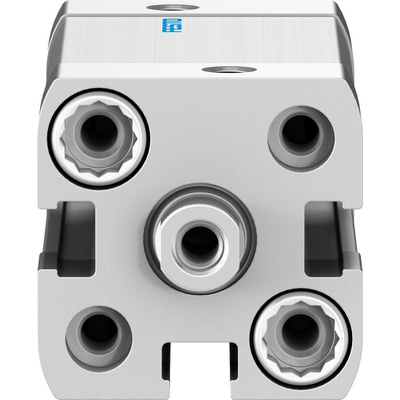

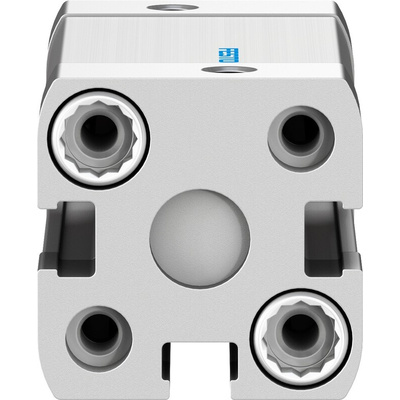

Festo Double-Acting Pneumatic Cylinder, 16mm Bore, 25mm Stroke - ADN-16-25-I-P-A

Ensure high-performance even in small applications with this compact double-acting pneumatic actuator from Festo. Dimensions of 29 (height) x 29 (width) x 64.7mm (length) make it up to 50% smaller than a standard cylinder. The magnetic piston rods and proximity sensor mounted in slots along the cylinder body enable contactless position detection. The flexible polymer end cushioning reduces noise and vibration, improving your working environment and prolonging the unit's service life.

• Built for low friction to enable continuous operation
• End cushioning doesn't need adjustment, saving time and boosting productivity
• Maximum operating pressure of 10 bar for versatile use
• Operating temperature range of -20°C to +80°C makes it suitable for use in harsh environments
• M5 ports for standardised use

Applications

• Production lines
• Automatic doors
• Factory automation

Should this cylinder be mounted horizontally or vertically?

This Festo ADN series cylinder can be either horizontally or vertically mounted, according to the needs of your setup and the space available.

What size port connections does this cylinder have?

This cylinder has M5 port connections.
