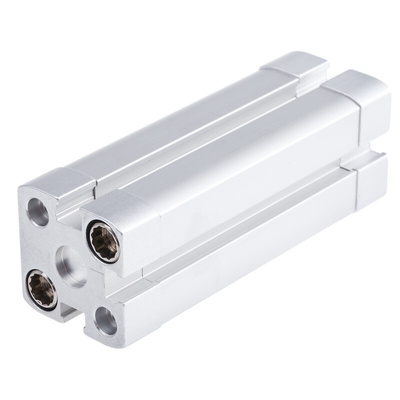

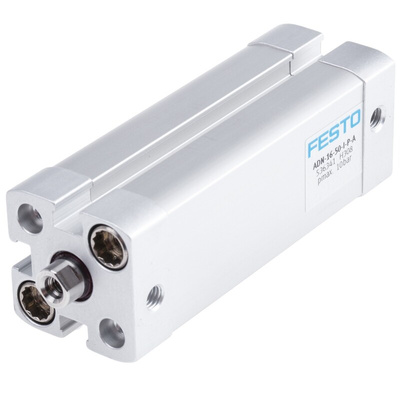

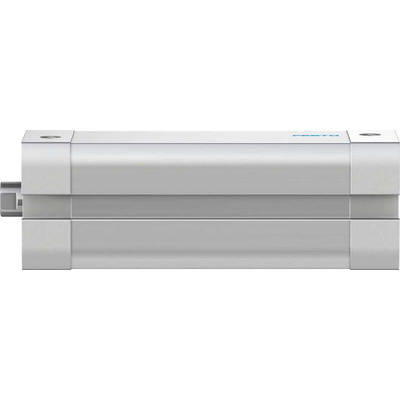

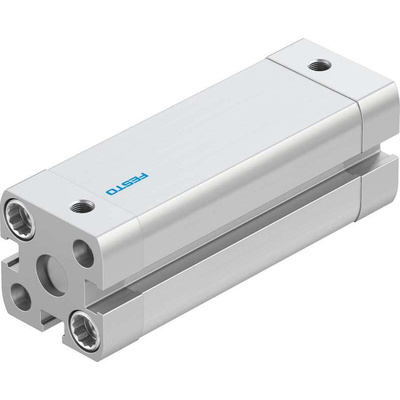

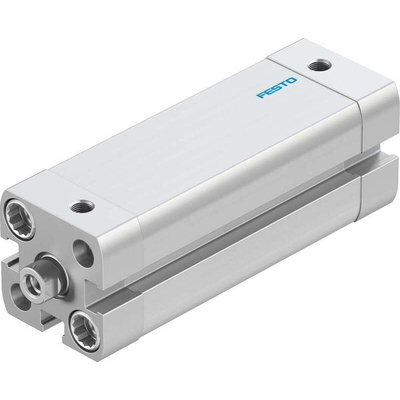

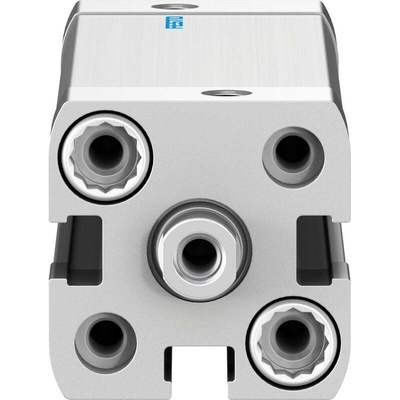

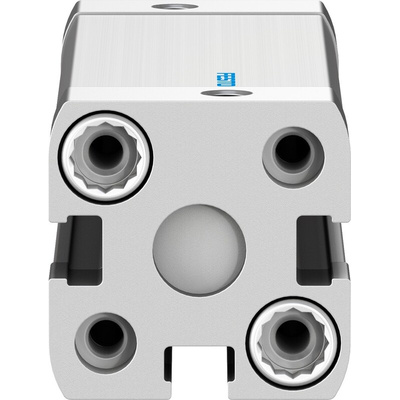

ADN-16-50-I-P-A, Festo Pneumatic Cylinder - 536341, 16mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Flexible Cushioning Rings, 0.6 to 10 Bar Operating Pressure - ADN-16-50-I-P-A

Get items into line with this pneumatic cylinder from Festo. It's double-acting, so the piston rod's movement is controllable as it moves in and out. The rod has a small stroke of 50mm, allowing you to carry out precise movements such as picking and placing with robotic arms on assembly lines. Featuring cushioning at both ends, the component absorbs residual energy to reduce wear. As this needs no adjustment, you can breeze through setup and servicing. Three slots on the outside of the cylinder provide a flexible and space-saving way to mount a proximity sensor for all your position-detecting tasks.

Features & Benefits

• Mounts in any position whether you're using threaded or through-hole fixings, keeping installation flexible
• Suitable for use with lubricated and unlubricated systems, boosting versatility
• Works in temperatures between -20°C and +80°C to meet the demands of industrial environments
• High-alloy steel rod and wrought-aluminium barrel with anodised cover means it's strong and durable

Applications

• Assembly lines
• Packaging systems
• Plant machinery
• Process control equipment

How long is this pneumatic cylinder?

This pneumatic cylinder has a total length of 89.7mm when the rod's extended, keeping it compact for tightly packed setups.
