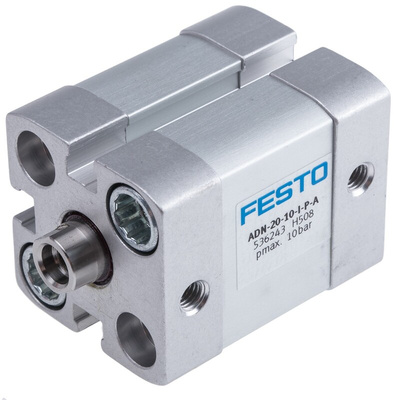

ADN-20-10-I-P-A, Festo Pneumatic Cylinder - 536243, 20mm Bore, 10mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure Range, M5 Pneumatic Connection - ADN-20-10-I-P-A

Looking for a compact way to create linear motion in your system? Keep everything flowing in the right direction with this Festo pneumatic cylinder. It's a double-acting device that takes in air at both ends, so you get power from both the outward and return strokes. Built-in elastic cushioning reduces the risk of damage from the piston's impact. As you can use it with clean or lubricated air sources, this is a go-to choice for all sorts of pneumatic systems. It tips the scales at just 131g, meaning you can be sure it won't strain your setup.

Features & Benefits

• Dimensions of 35.5 (W) x 35.5 (H) x 52.5mm (L), so it fits snugly into small setups
• Corrosion-resistant aluminium alloy body withstands damp environments, for a long service life
• Industry-standard M5 thread pneumatic connection for easy compatibility
• Durable PUR O-rings form airtight seals to keep system pressure stable

Applications

• Material handling
• Food production
• Automated assembly lines

How do I install this pneumatic cylinder?

This device fixes to equipment using a simple M6 piston rod thread, quickly screwing into place for hassle-free installation.
