ADN-20-20-I-P-A, Festo Pneumatic Cylinder - 536245, 20mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

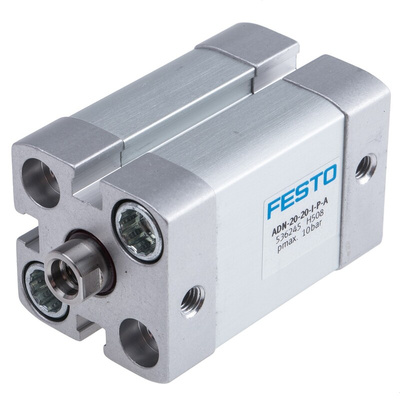

Festo Double-Acting Pneumatic Cylinder, 20mm Bore, 20mm Stroke - ADN-20-20-I-P-A

This double-acting pneumatic cylinder from Festo is a compact unit that maximises productivity in confined spaces. It initiates linear motion to perform tasks like positioning, clamping or ejecting items, so it's a versatile option. The dual connection ports use compressed air to advance and retract the piston and provide reliable motion control. Flexible cushioning rings absorb residual energy to facilitate higher piston speeds and machine cycles. As the polymer bearing and end caps are lightweight, they won't add strain to your setup.

• High-performance cushioning for minimal friction extends the unit's service life
• Wide operating pressure range from 0.6 to 10 bar for use with low-pressure and high-pressure applications
• Pre-drilled holes and compatibility with mounting accessories for easier installation
• Wide operating temperature range from -20°C to +80°C for use in tough indoor and outdoor settings

Applications

• Automotive industry
• Aerospace applications
• Medical equipment

Can I use this pneumatic cylinder in heavy-duty environments that are hot and humid?

Yes, you can confidently use this Festo pneumatic cylinder in any harsh conditions. The cover consists of anodised aluminium that won't rust, flake or chalk.
