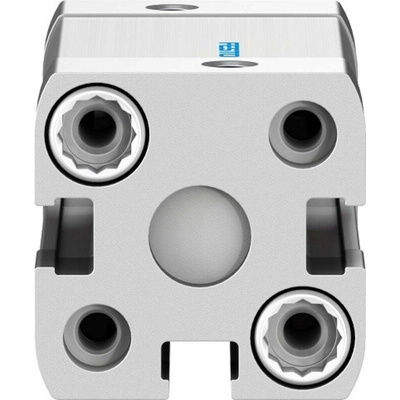

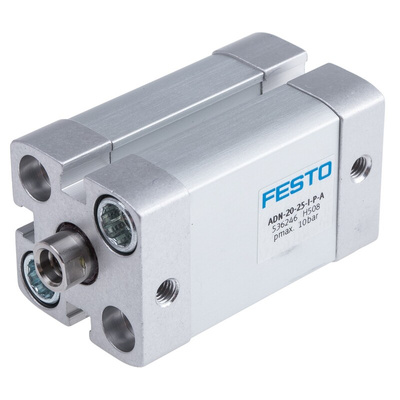

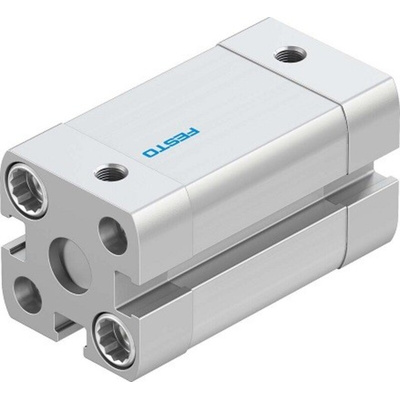

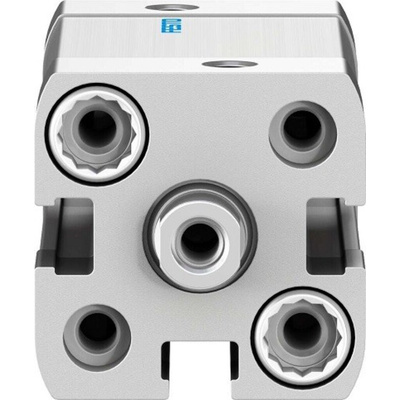

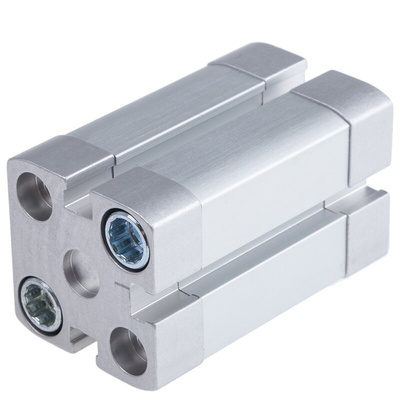

ADN-20-25-I-P-A, Festo Pneumatic Cylinder - 536246, 20mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, Elastic Cushioning Type - ADN-20-25-I-P-A

Save space in your automated system with this nifty pneumatic cylinder from Festo. Its compact length of 67.5mm makes it an ideal choice for work areas without an inch to spare. Slots in the body enable you to flush-mount a proximity sensor (such as 121-5835), which teams up with the magnetic piston rod to deliver contactless positioning with precision. These slots are on three sides, so you can fit a sensor wherever works best for your system. The cylinder operates in any position and can be direct or screw-mounted for convenience. Flexible cushioning at both ends absorbs energy and reduces friction, ensuring tip-top performance with minimal noise and wear.

Features & Benefits

• Operates between 0.6 and 10 bar, so it's suitable for medium-duty applications
• Works with lubricated and unlubricated systems for flexibility
• Robust wrought-aluminium alloy housing is strong and durable, for a long service life

Applications

• Filling machines
• Food processing equipment
• Packaging facilities
• Robotics systems

What size tubing is best for this pneumatic cylinder?

Standard tubing with a diameter of 4mm, such as Festo's PUN-H translucent polyurethane type (126-2775), works well with this pneumatic cylinder.
