ADN-20-40-I-P-A, Festo Pneumatic Cylinder - 536248, 20mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 82.5mm Length, Elastic Cushioning Type - ADN-20-40-I-P-A

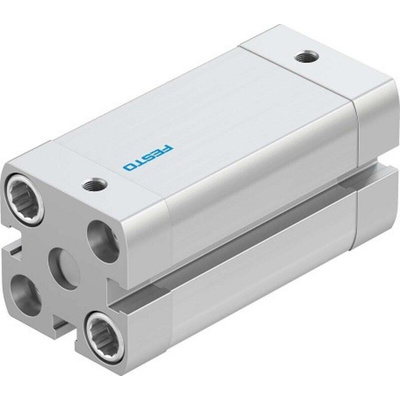

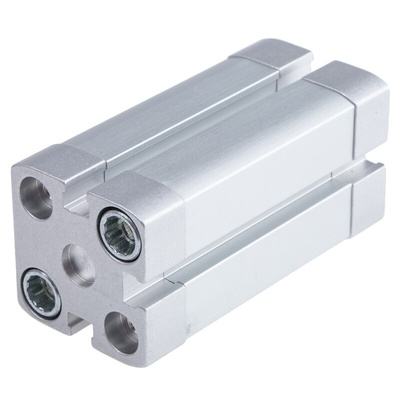

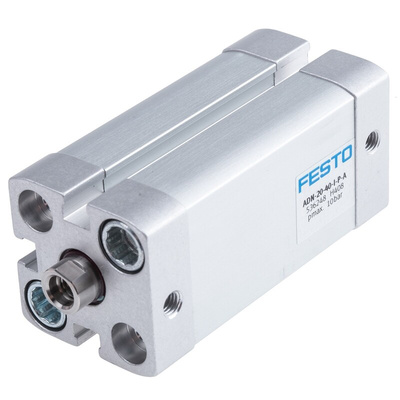

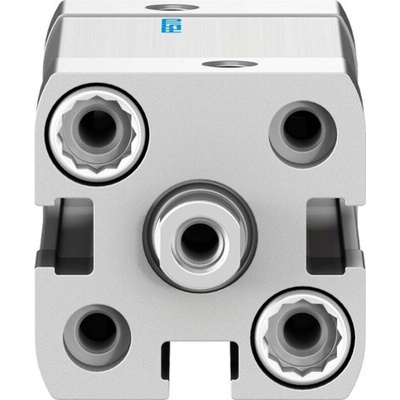

This small but mighty pneumatic cylinder from Festo takes the strain out of positioning tasks. With compact dimensions of 35.5 (W) x 35.5 (H) x 82.5mm (L), it's an ideal choice for use in tight workspaces. As it's double-acting, it generates linear motion in both directions to tackle tasks like lifting and lowering loads in your automated process. Built-in cushioning absorbs excess energy from the piston's impact to ensure jolt-free motion and minimal wear. It's an elastic type of cushioning, which saves the need for adjustments during installation. Slots are positioned on three sides of the cylinder to support the flush-mounting of a proximity sensor.

Features & Benefits

• Wrought-aluminium alloy cover and high-alloy steel rod for durability in tough conditions
• Built for temperatures between -20°C and +80°C, so it's well suited to processing environments
• Threaded rod end means it's easy to make attachments

Applications

• Packaging systems
• Food and drink processing
• Materials handling
• Assembly lines

How do I mount this pneumatic cylinder?

Screw-fit flange (202-2486) and foot (203-0878) accessories are available to help you mount this pneumatic cylinder horizontally or vertically in no time.
