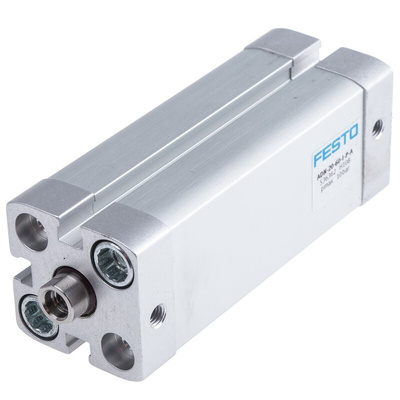

ADN-20-60-I-P-A, Festo Pneumatic Cylinder - 536362, 20mm Bore, 60mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Female Piston Rod Thread, M5 Pneumatic Connection - ADN-20-60-I-P-A

Need to push your system in the right direction? Choose this pneumatic cylinder from Festo to get things moving. It's a double-acting assembly that gives you accurate control over back-and-forth actions. PUR seals resist corrosion from chemicals and oils while keeping contaminants at bay, to ensure longevity. This product's alloy steel piston rod and aluminium alloy barrel resist mechanical stress, abrasion and other forces without suffering a dent in performance. Because they manage force effectively, the unit's endpoints experience only 0.2J of energy from impacts.

• Light 131g weight at 0mm stroke minimises strain on your infrastructure
• Inbuilt cushioning plates at both ends prevent damage from impact and are maintenance-free
• Suitable for cleanroom use, so compatible with hygiene-critical applications
• 60mm stroke and 20mm piston diameter generate high power to support demanding tasks

Applications

• Processing and packaging plants
• Transportation industry
• Factory automation

What size is this cylinder?

This item has compact dimensions of 35.5 (H) x 35.5 (W) x 102.5mm (L), so it's a space-efficient choice.

Can I use the cylinder in harsh industrial conditions?

Yes. It operates in a broad temperature range between -20°C and +80°C, meaning it copes well in harsh industrial conditions.
