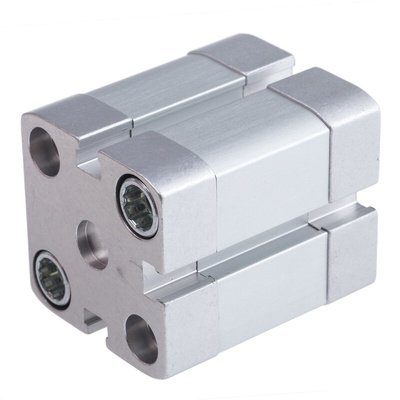

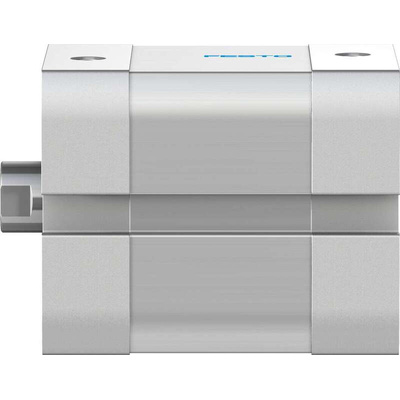

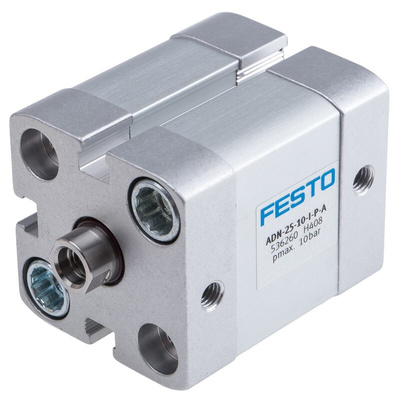

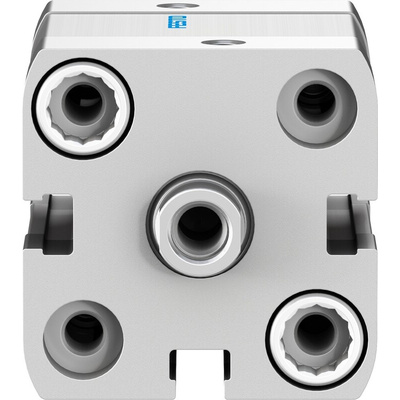

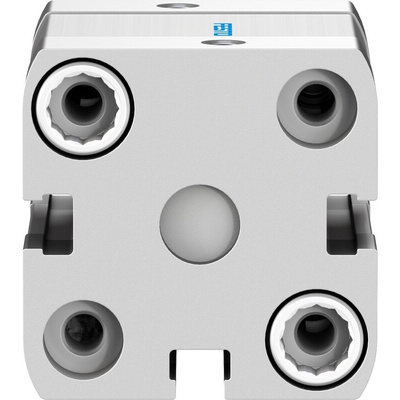

ADN-25-10-I-P-A, Festo Pneumatic Cylinder - 536260, 25mm Bore, 10mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 25mm Bore, M5 Pneumatic Connection - ADN-25-10-I-P-A

Give your system some oomph with this pneumatic cylinder from Festo. It produces around 295N of thrust on the outstroke at 6 bar to suit heavy-duty applications. Since it can handle operating pressures between 0.6 and 10 bar, it's ideal for a wide variety of systems. Thanks to elastic cushioning rings at both ends, the piston can't slam home, meaning your equipment's protected from damage.

• Wide temperature range between -20°C and +80°C to suit installation in demanding settings
• Corrosion-resistant anodised aluminium covers prevent rust build-up, for a long service life
• Compact dimensions of 39.5 (W) x 39.5 (L) x 54.5mm (D), so it's a space-saving choice

Applications

• Air tools
• Manufacturing systems
• Automotive industry
• Medical devices

What's the difference between double-acting and single-acting cylinders?

Double-acting cylinders like this one have a piston that's driven backwards and forwards by compressed air. They're different from single-acting cylinders as they let you control the return stroke, making them suitable for operations like opening and closing a gate.

Can I add a proximity sensor?

Yes, adding proximity sensors (such as 121-5836) to your system is a breeze, thanks to the side slots that keep wires flush.
