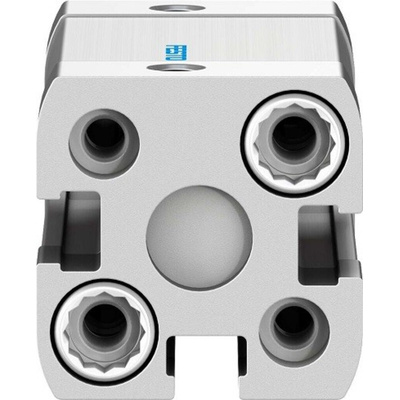

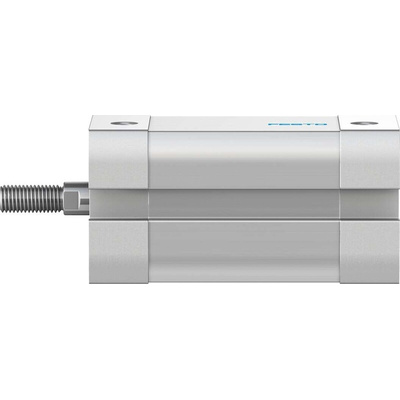

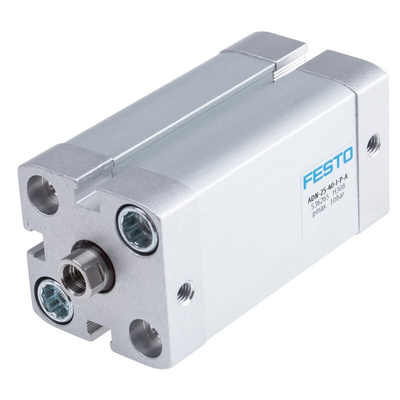

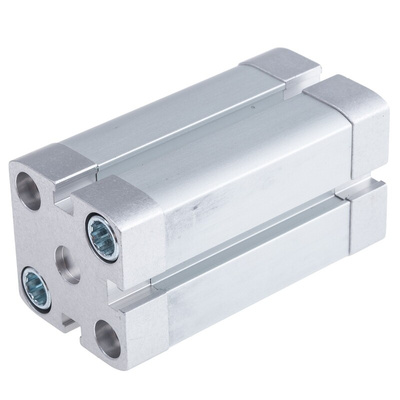

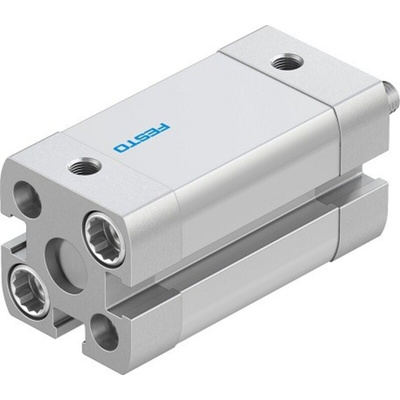

ADN-25-40-I-P-A, Festo Pneumatic Cylinder - 536265, 25mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, Female Thread on Piston Rod - ADN-25-40-I-P-A

Building a compact machine setup is no sweat with this pneumatic cylinder from Festo. It's 84.5mm long with a 40mm stroke, so you get high functionality in a small package. Flexible cushioning at both ends reduces the effect of impact from the piston rod, cutting noise and any risk of vibration throwing your system off balance. Slots on the cylinder body make it easy to couple with a proximity sensor, giving you precise position detection. Thanks to a standard-sized M5 port connection, it's a doddle to hook up an elbow connector (121-6024) or straight fitting (121-6037).

Features & Benefits

• Operates safely between -20°C and +80°C, so can easily handle temperature fluctuations
• Wrought-aluminium alloy cover is anodised to boost durability
• Threaded rod end means you can attach clamping components in a jiffy
• Works with lubricated and unlubricated pneumatic systems for convenience

Applications

• Laboratories
• Robotics systems
• Processing machines
• Assembly lines

What's a double-acting pneumatic cylinder?

A double-acting pneumatic cylinder like this one lets you control movement on the rod's outgoing and return strokes. This makes it an effective choice for tasks like pushing and pulling or raising and lowering loads in your application.
