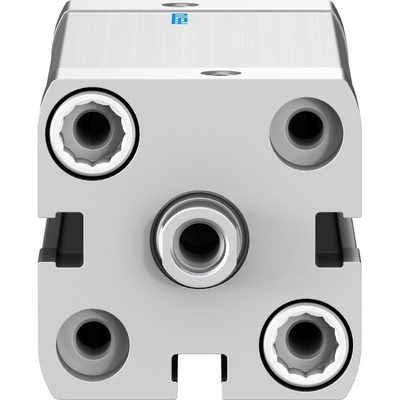

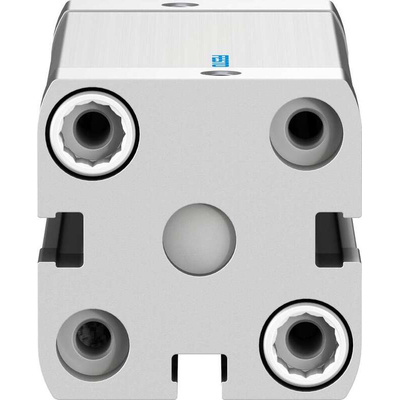

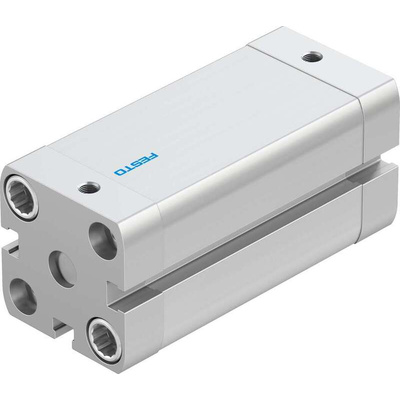

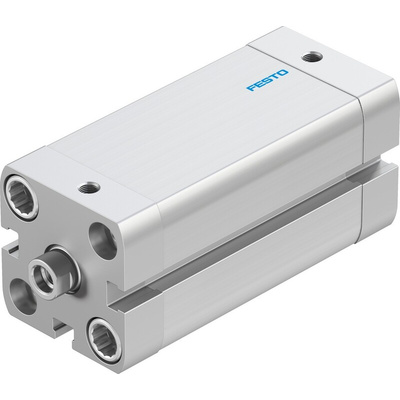

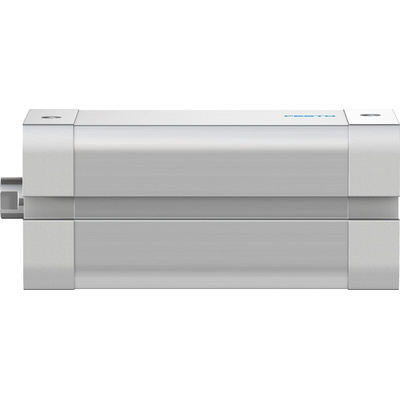

ADN-25-50-I-P-A, Festo Pneumatic Cylinder - 536266, 25mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

ADN ISO 21287 Pneumatic Cylinders- Flexible Cushioning

FESTO ADN series of compact pneumatic cylinder are up to 50% smaller than standard pneumatic cylinders for maximum productivity in confined spaces. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod. The extensive range of stroke length and bore size variants in the ADN series can be configured to suit a broad range of applications.

Pneumatic Cylinder Operation
The ADN series is a double acting actuator with air applied to extend and to retract the piston in a linear motion to the desired stroke length. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Cylinders are fitted with flexible polymer end cushioning helping to reduce noise and vibration, prolong service life and increase production and productivity.

Features and Benefits

Complies with ISO 21287 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Cushioning requires no adjustment saving maintenance time and cost

How do I mount the pneumatic cylinder?

The ADN series pneumatic actuators can be mount horizontally or vertically to suit the required application. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, Wrought Aluminium Alloy Construction, M6 Piston Rod Thread - ADN-25-50-I-P-A

Want your machinery to move in a straight line? Get things going with this pneumatic cylinder from Festo. Its double-acting design means it has two open ports that let air in and out to push and pull the piston rod. Thanks to its tough high-alloy steel body, this unit can stand up to impact and corrosion, so you get a long service life. The barrel is made from rugged wrought aluminium alloy to shrug off wear caused by repeated use. Robust thermoplastic polyurethane seals help close the deal by keeping this cylinder air-tight to prevent pressure drop.

Features & Benefits

• Operating pressure range between 0.6 and 10 bar for versatility
• Cushioning rings help prevent stress cracking
• Pre-cut slots enable the flush mounting of a sensor to monitor the rod

Applications

• Power stations
• Construction industry
• Laboratories
• Aerospace engineering

How do I mount this pneumatic cylinder?

Thanks to the simple threaded design of its M5 pneumatic connection, you can mount the component by screwing it to your port without using any tools.

What's the operating temperature range of the cylinder?

This product has a wide operating temperature range between -20°C and +80°C so you can safely use it in challenging conditions.
