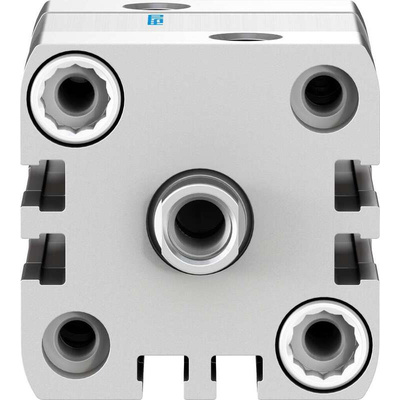

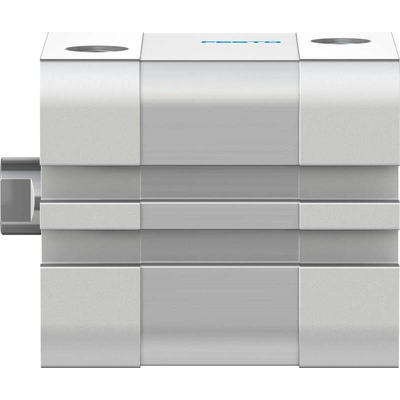

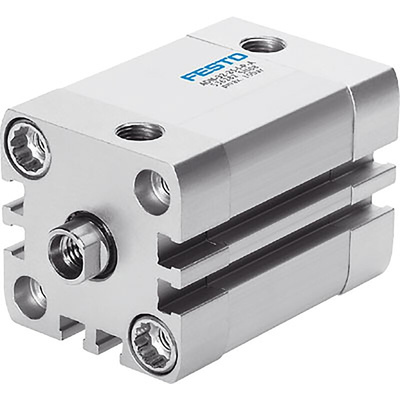

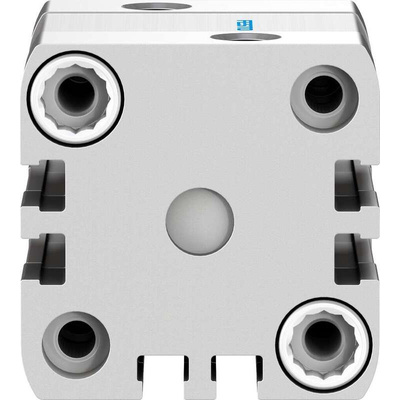

ADN-32-10-I-P-A, Festo Pneumatic Cylinder - 536279, 32mm Bore, 10mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, M8 Piston Rod Thread - ADN-32-10-I-P-A

Get things moving in your air-powered setup with this pneumatic cylinder from Festo. It produces 483N of outward force at just 6 bar, making it ideal for handling heavy-duty equipment. As a double-acting unit, it supplies similar strength on the return stroke, so it's suitable for opening and closing or lifting and lowering industrial components. The wrought aluminium alloy barrel is resistant to corrosion and impact, so you can be sure of a long service life.

• Wide -20°C to +80°C operating temperature range suits use in extreme applications
• TPE-U PUR seals block out dust and debris for smooth-sailing operation
• Compact dimensions of 47 (W) x 47 (L) x 60mm (D) for installation in confined spaces

Applications

• Medical sector
• Manufacturing plants
• Food and beverage industry

How do I mount this cylinder?

You can mount this cylinder using its through hole, the internal female thread or by using a mounting accessory (121-4328) for convenience.

Can I add a proximity sensor?

Yes, you can easily add a proximity sensor (259-5717) to make your pneumatic system extra-smart. The cylinder has a slot on its side so you can keep the sensor flush.

FESTO ADN Series

Festo ADN/AEN

Festo Pneumatic Cylinders Operating Manual

ADN-32-10-I-P-A Specification Sheet

Brochure - The Future of Standard Cylinders
