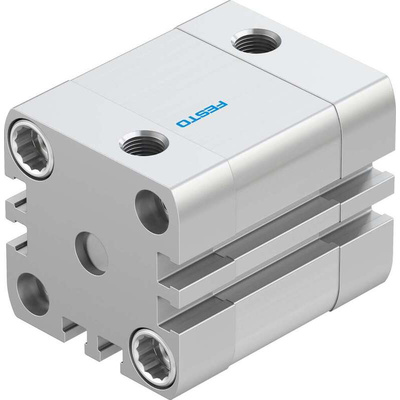

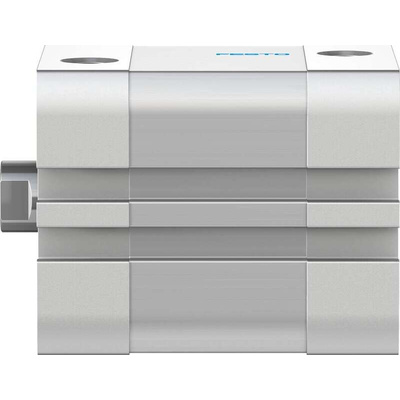

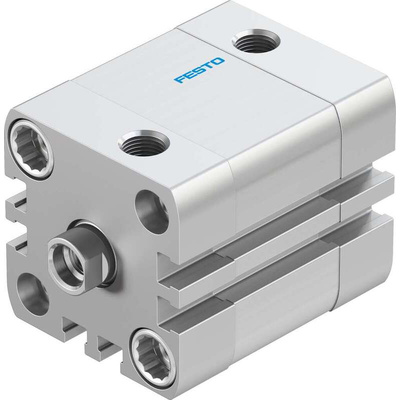

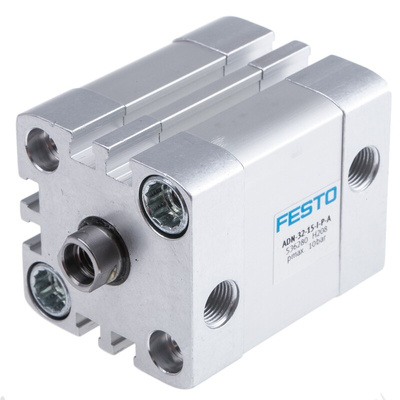

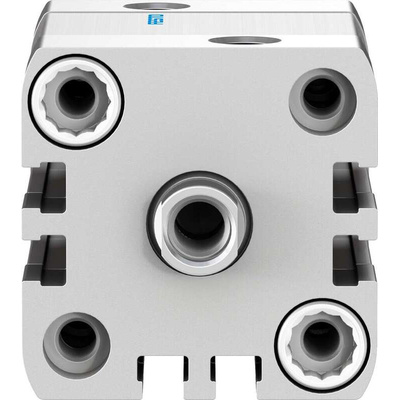

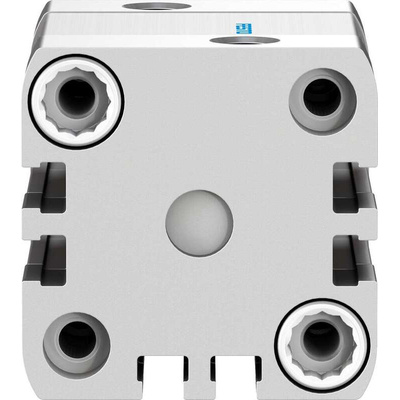

ADN-32-15-I-P-A, Festo Pneumatic Cylinder - 536280, 32mm Bore, 15mm Stroke, ADN Series, Double Acting, Цилиндр

ADN ISO 21287 Pneumatic Cylinders- Flexible Cushioning

FESTO ADN series of compact pneumatic cylinder are up to 50% smaller than standard pneumatic cylinders for maximum productivity in confined spaces. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod. The extensive range of stroke length and bore size variants in the ADN series can be configured to suit a broad range of applications.

Pneumatic Cylinder Operation
The ADN series is a double acting actuator with air applied to extend and to retract the piston in a linear motion to the desired stroke length. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Cylinders are fitted with flexible polymer end cushioning helping to reduce noise and vibration, prolong service life and increase production and productivity.

Features and Benefits

Complies with ISO 21287 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Cushioning requires no adjustment saving maintenance time and cost

How do I mount the pneumatic cylinder?

The ADN series pneumatic actuators can be mount horizontally or vertically to suit the required application. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure Range, M8 Piston Rod Thread - ADN-32-15-I-P-A

Take on tough handling tasks with this pneumatic cylinder from Festo. It's a double-acting unit that uses compressed air to deliver precise 15mm strokes in both directions, so it's a sure fit for moving products in tight spaces. Mounting it to your existing setup is hassle-free, thanks to a standard M8-threaded pneumatic connection. As this cylinder comes with built-in cushioning that soaks up the force of its strokes, it stays stable and works quietly, even at high speed.

Features & Benefits

• Performs with clean and lubricated compressed air for versatility
• Delivers forces up to 483N at pressures of 6 bar to move heavy loads
• Corrosion-resistant aluminium alloy casing for durability in damp settings
• Comes with a built-in magnet for simple position detection with a sensor (such as 121-5836)
• PUR seals prevent leaks, keeping system pressure stable

Applications

• Printing industry
• Small parts manufacturing
• Automotive production

Why should I track the position of my pneumatic cylinder?

By monitoring your unit's position from a controller, you can automatically signal other machine elements to start up, for easy system management.
