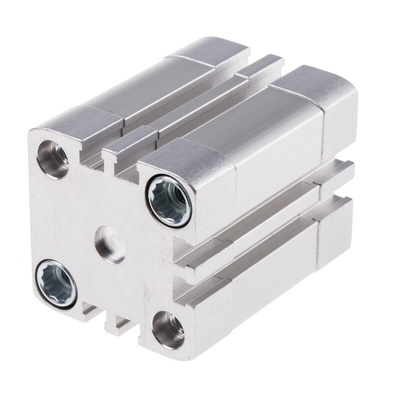

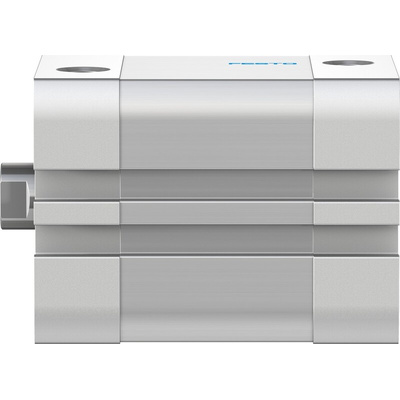

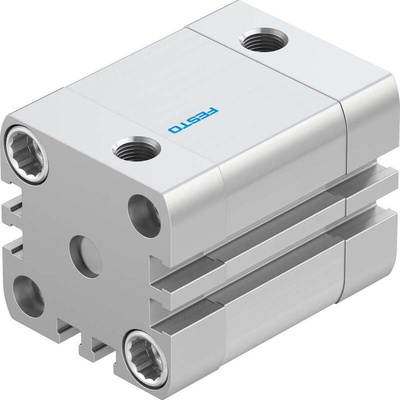

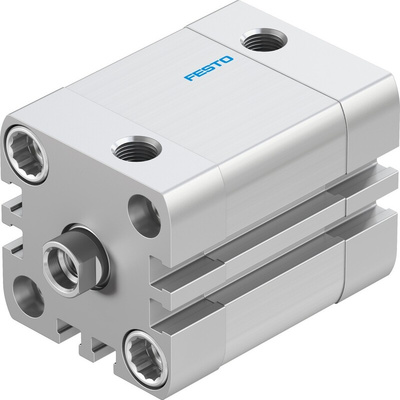

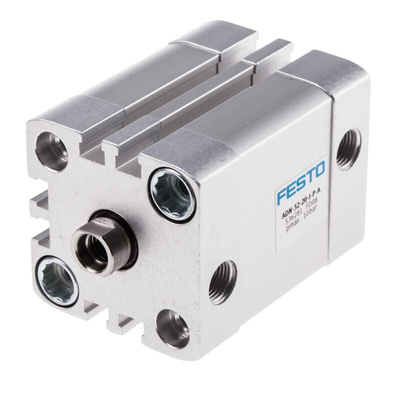

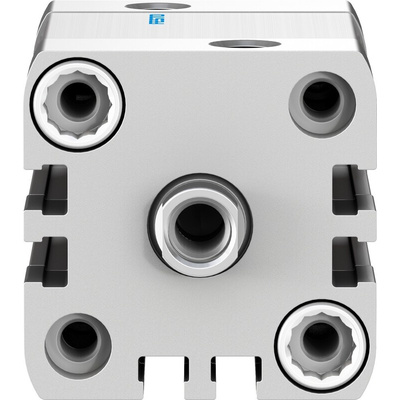

ADN-32-20-I-P-A, Festo Pneumatic Cylinder - 536281, 32mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure Range, M8 Piston Rod Thread - ADN-32-20-I-P-A

Reach for this pneumatic cylinder from Festo to keep your industrial processes in line. It generates the linear motion needed to stop, position or eject objects in automated operations. For spot-on accuracy and efficiency, this double-acting unit uses compressed air at both ends to power thrust and retraction. Its short length of 70mm makes it a sure fit in systems that are limited on space. This cylinder keeps going at temperatures between -20°C and +80°C, so you can count on consistent performance in tough environments.

Features & Benefits

• Flexible TPE-U(PUR) seals for an airtight unit that performs reliably
• Slots for flush-mounting proximity sensors enable contactless operation
• Aluminium alloy barrel withstands corrosion in damp or humid environments
• Wide operating pressure range between 0.6 and 10 bar for versatility

Applications

• Automated assembly and packaging lines
• Vehicle manufacturing
• Medical imaging installations

Do I have to adjust the cushioning of this pneumatic cylinder?

No, you don't need to – it installs in a jiffy thanks to its non-adjustable double-ended cushioning. Not only does this save time and effort, but it also prevents malfunctions caused by incorrect adjustments.

What's the size of the piston rod thread?

This unit has an M8 piston rod thread, making it widely compatible with most standard fittings.
