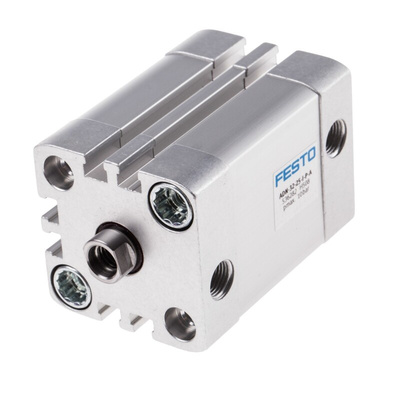

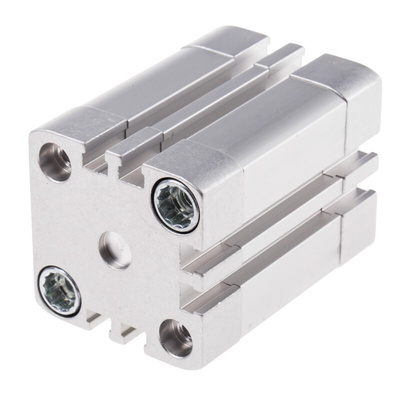

ADN-32-25-I-P-A, Festo Pneumatic Cylinder - 536282, 32mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, 25mm Stroke - ADN-32-25-I-P-A

When you need a pneumatic cylinder that can handle continuous use, install this option from Festo. It has low-friction construction with a polymer end cushion that reduces noise and vibration to keep movements quiet and smooth. This also ensures the cylinder unit works efficiently and minimises wear on parts. As a double-action device, it's capable of moving loads up and down or forwards and backwards. It's mountable horizontally or vertically and has a modular design to easily combine it with mounting brackets, sensors and valves for versatility.

• Compact dimensions of 75 (length) x 47 (width) x 47mm (height) to fit inside robotic arms and machine tools
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Flexible polymer cushioning means no adjustments are necessary, saving you installation and maintenance time

Applications

• Industrial automation
• Materials handling
• Conveying systems
• Assembly lines

How do I mount proximity sensors on this pneumatic cylinder?

This pneumatic cylinder has slots on the sides of its body, so it's easy to mount proximity sensors without taking up much space.

FESTO ADN Series

Festo ADN/AEN

Festo Pneumatic Cylinders Operating Manual

ADN-32-25-I-P-A Specification Sheet
