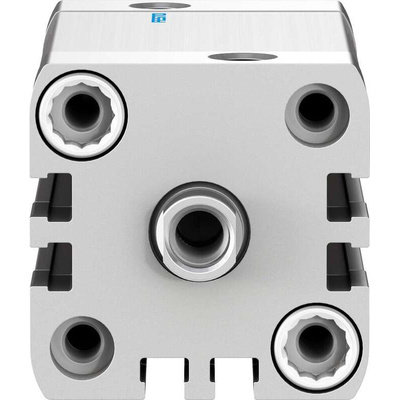

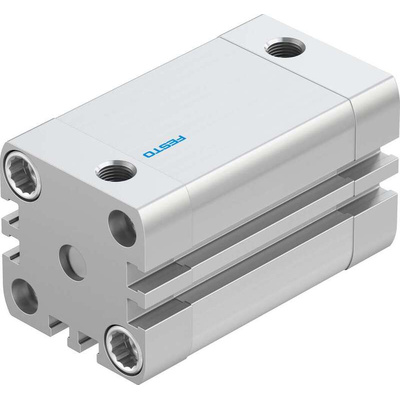

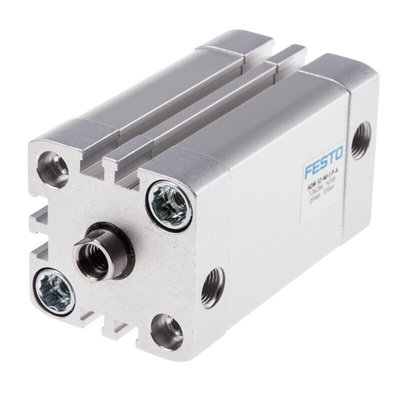

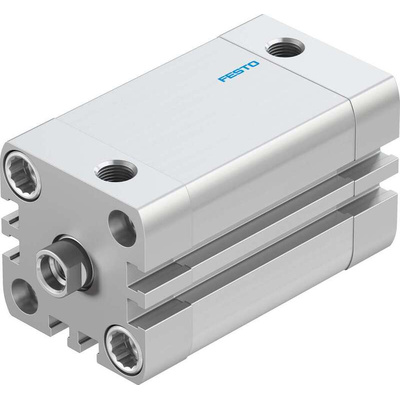

ADN-32-40-I-P-A, Festo Pneumatic Cylinder - 536284, 32mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

ADN ISO 21287 Pneumatic Cylinders- Flexible Cushioning

FESTO ADN series of compact pneumatic cylinder are up to 50% smaller than standard pneumatic cylinders for maximum productivity in confined spaces. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod. The extensive range of stroke length and bore size variants in the ADN series can be configured to suit a broad range of applications.

Pneumatic Cylinder Operation
The ADN series is a double acting actuator with air applied to extend and to retract the piston in a linear motion to the desired stroke length. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Cylinders are fitted with flexible polymer end cushioning helping to reduce noise and vibration, prolong service life and increase production and productivity.

Features and Benefits

Complies with ISO 21287 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Cushioning requires no adjustment saving maintenance time and cost

How do I mount the pneumatic cylinder?

The ADN series pneumatic actuators can be mount horizontally or vertically to suit the required application. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, Aluminium Alloy Casing, 0.6 to 10 Bar Operating Pressure Range - ADN-32-40-I-P-A

Keen to have close control over components in your automated system? Take charge with this pneumatic cylinder from Festo. With its double-acting mechanism, it takes in air from one port and expels it from another, creating linear movement in two directions. By generating forces up to 483N at 6 bar of pressure, this unit makes light work of handling large loads. It also has slots along the body where you can mount a proximity sensor to enable precise positioning. As the cylinder comes with built-in cushioning at both ends, it smooths out vibrations so your equipment functions without a hitch.

Features & Benefits

• PUR rings form airtight seals to maintain stable pressure
• Works with pressures between 0.6 and 10 bar, so it can keep up with intense pneumatic applications
• Compact measurements of 90 (L) x 47 (W) x 47mm (H) to fit neatly into a busy setup
• Performs reliably in a wide temperature range between -20°C and +80°C

Applications

• Industrial automation
• Recycling centres
• Automotive industry

How do I mount this cylinder onto my machine?

For speedy and hassle-free installation, this component screws on directly via a standard G1/8 connection.
