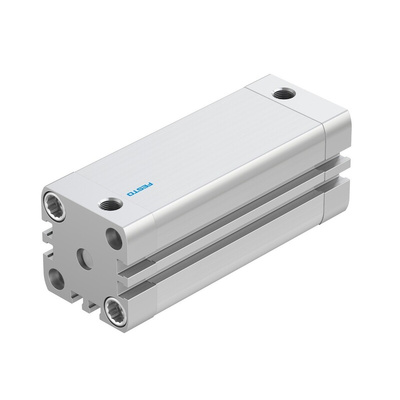

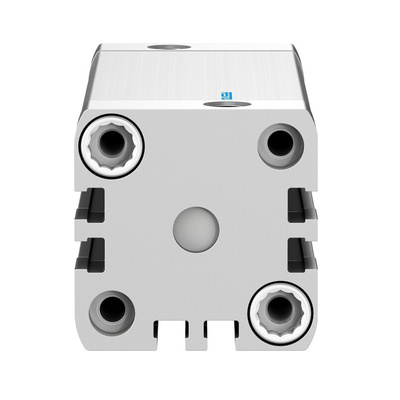

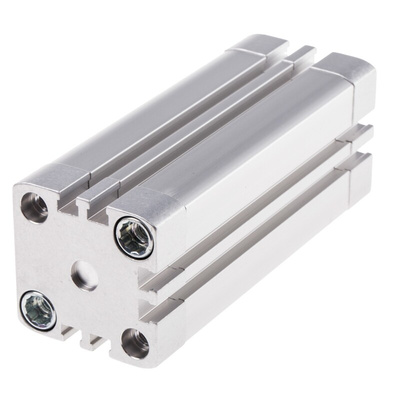

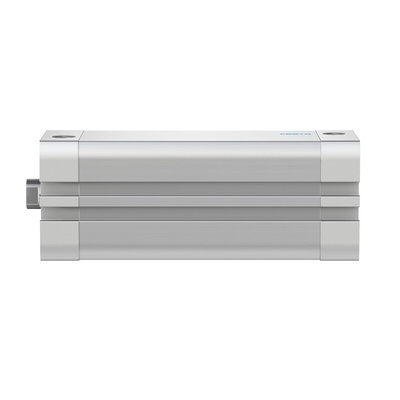

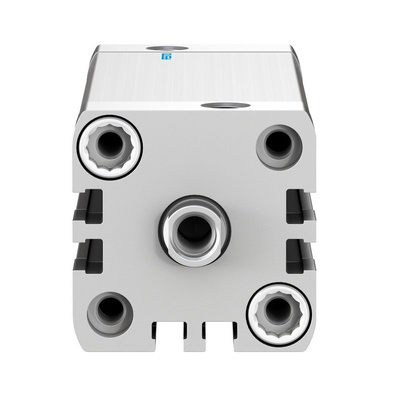

ADN-32-80-I-P-A, Festo Pneumatic Cylinder - 536287, 32mm Bore, 80mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Double Acting, G1/8 Port Connection - ADN-32-80-I-P-A

Achieve precise control when positioning small objects with this pneumatic piston rod from Festo. As it's a double-acting device, it uses air to extend and contract, which makes it a versatile choice for many positioning applications. The cylinder uses forces up to 483N, so it easily moves even large equipment for efficient task completion. Flexible padding at both ends of the rod absorbs disruptive vibrations, making this a safe option for use with sensitive parts.

• Anodised aluminium housing is corrosion-resistant to withstand tough industrial conditions
• Female M8 piston rod thread directly accepts proximity sensors for quick assembly
• Compact dimensions of 47 (width), 47 (height) and 130mm (depth) for easy installation in busy robotics systems
• Suitable for use with both clean and lubricated compressed air for added versatility

Applications

• Bottling plants
• Product transportation
• Positioning tasks
• Manufacturing industry

What's the difference between single-acting and double-acting pneumatic cylinders?

Single-acting piston rods only use air to extend before a spring pulls them back into their neutral position. Double-acting cylinders use air to move both outwards and inwards, meaning they apply similar forces when pushing and pulling.
