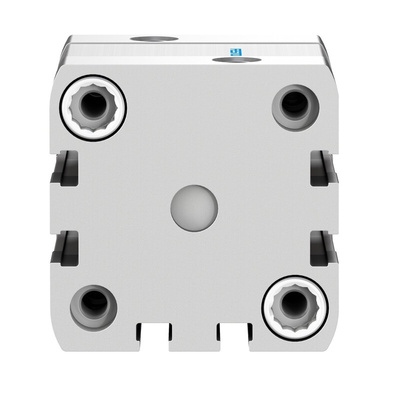

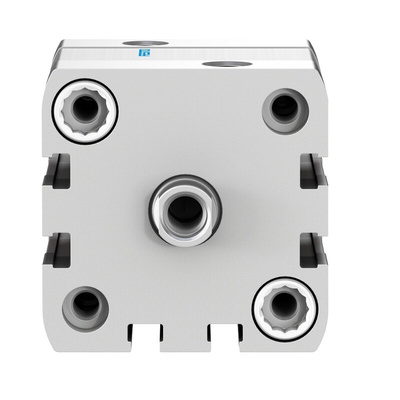

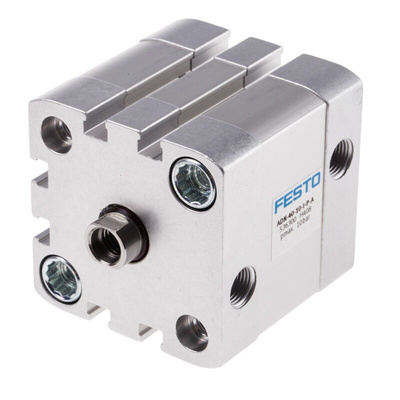

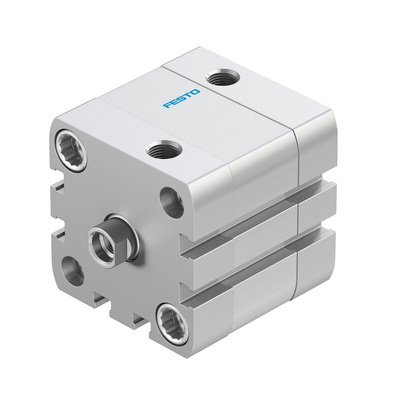

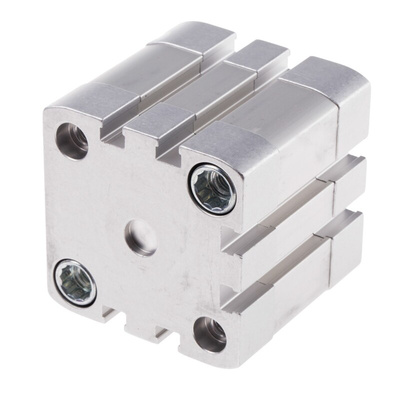

ADN-40-10-I-P-A, Festo Pneumatic Cylinder - 536300, 40mm Bore, 10mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Double Acting, 10 Bar Maximum Operating Pressure - ADN-40-10-I-P-A

This pneumatic piston rod from Festo delivers high forces over short distances. Its double-acting operation uses air to both extend and return the rod, making it ideal for applications that need a series of consistent movements. The cylinder's short 10mm stroke length means it quickly responds to instructions for efficient processing. With flexible cushioning rings at the tip and base of the rod, the piston's movements generate less friction for longer continuous running times.

• Applies forces up to 754N to easily support even large loads
• Durable PUR seal prevents leakage for reliable air-powered performance over a long service life
• Wide operating temperature range between -20°C and +80°C is ideal for demanding industrial conditions
• G1/8 connection thread is widely compatible with common sensing equipment

Applications

• Cleaning systems
• Automated packaging
• Foil stamping
• Metalworking industry

Is this pneumatic cylinder corrosion-resistant?

The piston rod has anodised aluminium alloy casing so it's protected against corrosion.

Do I need special tools to mount this piston rod?

The cylinder directly mounts onto your equipment using a through-hole method without extra tools. You can mount the rod horizontally or vertically depending on your needs.
