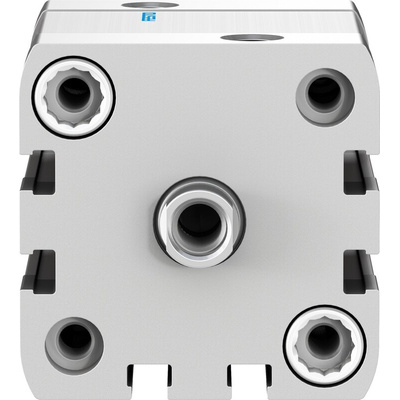

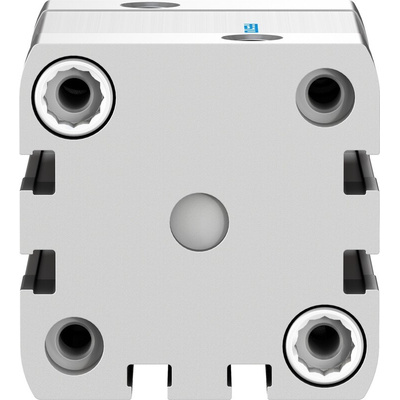

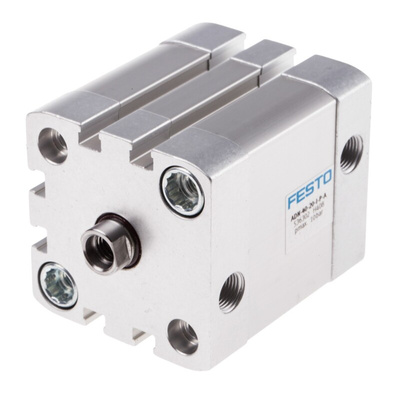

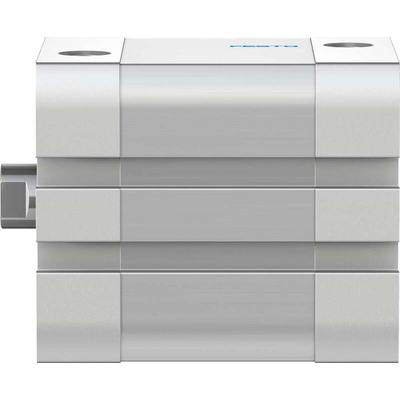

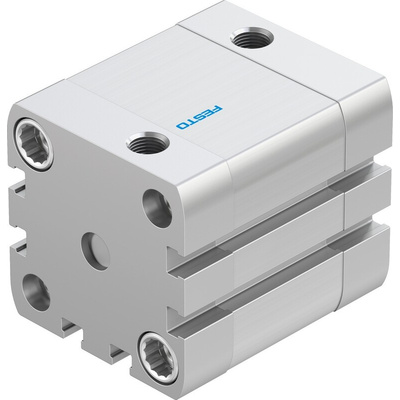

ADN-40-20-I-P-A, Festo Pneumatic Cylinder - 536302, 40mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure Range, G1/8 Port Connection - ADN-40-20-I-P-A

If linear motion is what drives your operations, this pneumatic cylinder from Festo is your answer. It's designed to repeatedly position, clamp or eject objects in a straight line. This double-acting device is powered by compressed air at both ends and delivers thrust and retraction for on-point efficiency and accuracy. Non-adjustable cushioning speeds up installation and saves you the grief of incorrect adjustments. Need to detect items without contact? This cylinder's pre-machined slots let you flush-mount a proximity sensor to make position detection a breeze.

Features & Benefits

• Length of 71.1mm lets it fit into systems where space is at a premium
• TPE-U(PUR) seals keep it airtight for optimal performance
• Flexible, double-ended cushioning guards against impacts and extends its lifespan
• Low-friction design reduces wear and helps limit heat buildups

Applications

• Automotive manufacturing and maintenance
• Industrial control processes
• Medical equipment
• Pharmaceutical industry

Can I use this pneumatic cylinder in heavy-duty environments?

Yes, the aluminium-alloy barrel resists corrosion in damp and humid conditions. It suits rugged environments thanks to an operating temperature range between -20°C and +80°C.

Can I lubricate this pneumatic cylinder?

Yes, you can lubricate this cylinder to help extend its service life. Note that once you do so, it needs repeated lubrication.
