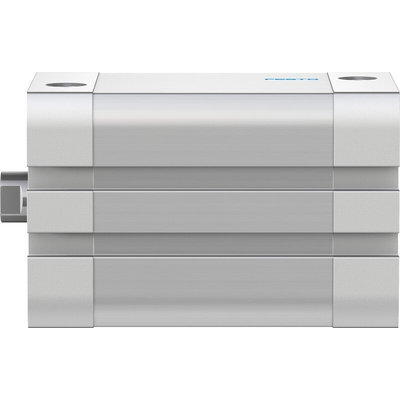

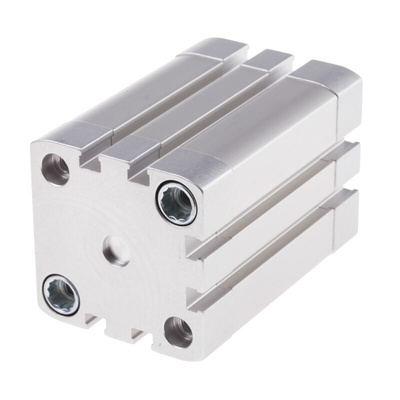

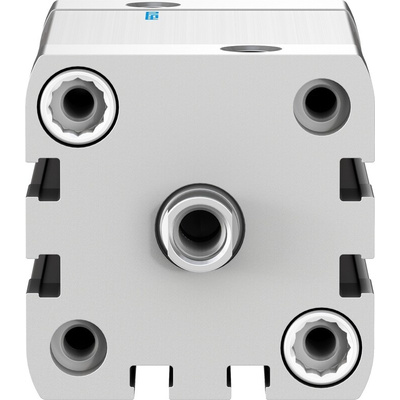

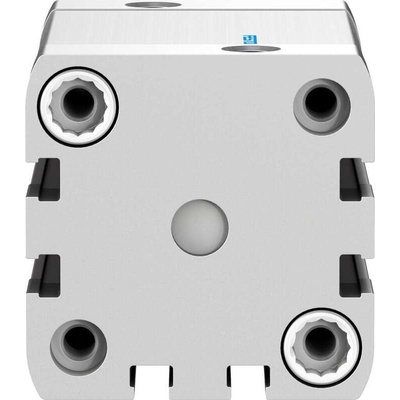

ADN-40-40-I-P-A, Festo Pneumatic Cylinder - 536305, 40mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 80g Moving Mass, M8 Piston Rod Thread - ADN-40-40-I-P-A

Need a space-saving solution for generating linear motion in your automated system? This pneumatic cylinder from Festo pushes things in the right direction. With compact dimensions of 54.5 (W) x 54.5 (H) x 91.1mm (L), it fits easily into busy setups. As a double-acting device, it delivers 754N of force on the outstroke and 686N on the instroke, so it's a great all-rounder for medium-duty applications. Cushioning rings at each end soften the impact of the piston to ensure reliable long-term performance. Install it directly in seconds using the handy through-hole mounting or internal thread options.

• Standard G1/8 port, so it's compatible with existing systems
• Durable high alloy steel rod resists corrosion to deliver a long service life
• Broad operating temperature range between -20°C and +80°C suits use in challenging environments
• Features slots to fit flush-mounted proximity sensors for automated control

Applications

• Manufacturing systems
• Automotive industry
• Food and drink production

What's the operating pressure range of this pneumatic cylinder?

This pneumatic cylinder has an operating pressure range of 0.6 to 10 bar, so it's a versatile piece of kit.
