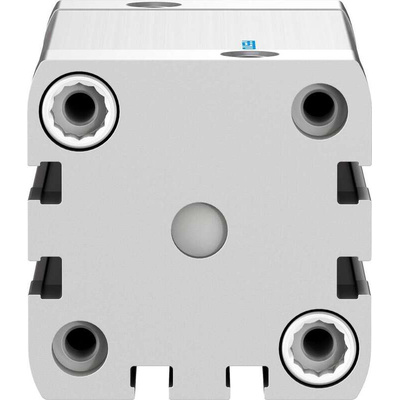

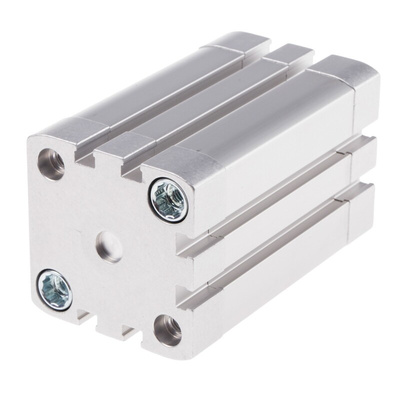

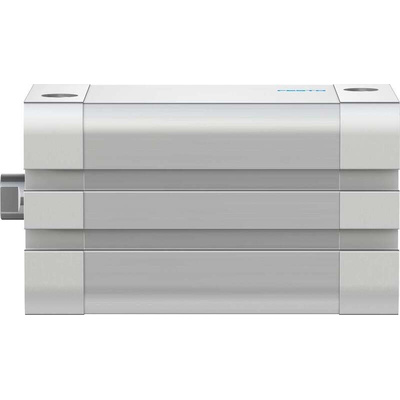

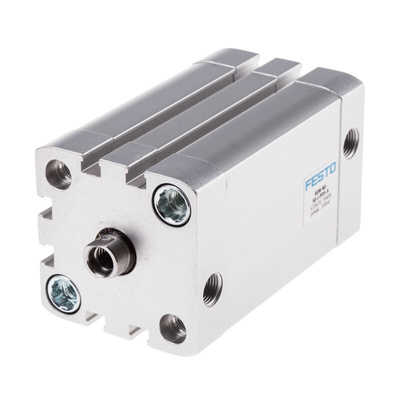

ADN-40-50-I-PPS-A, Festo Pneumatic Cylinder - 572670, 40mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Female Piston Rod Thread, 1 to 10 Bar Operating Pressure - ADN-40-50-I-PPS-A

Position, clamp and eject your components with ease thanks to this pneumatic cylinder from Festo. As it's a double-action type, the pressurised air moves both ways so you get easy control over movement. Compact dimensions of 54.5 (H) x 54.5 (W) x 101.1mm (L) mean you can rest assured it'll fit comfortably in busy setups where space is tight. A wide operating temperature range of -20 to +80°C means this is a reliable option for use in challenging environments.

Features & Benefits

• Self-adjusting pneumatic cushioning reduces noise and vibration for a longer service life
• Low friction design supports uninterrupted operation and cuts down on wear
• Flexible cushioning rings make it ideal for high-speed applications

Applications

• Factory automation
• Assembly lines
• Packing operations

How robust is this pneumatic cylinder?

This pneumatic cylinder is made from anodised aluminium, which will stand up strong to impact and corrosion.

Can I install a proximity sensor with this pneumatic cylinder?

Yes – there are pairs of slots on three sides of the cylinder's body that let you mount it securely with a proximity sensor.
