VZQA-C-M22U-15-GG-ALPOMN-4, Festo VZQA Series Threaded Pinch Valve, 3022832

FESTO VZQA Pneumatic Pinch Valves

The VZQA pneumatic actuated pinch valve is a 2 way valve fitting and is used for controlling the flow of different materials in the tubing or pipe. The valve is either open or closed, both ensure that there is minimum flow resistance and help prevent the fitting becoming blocked or clogged up.

An open valve enables free flowing material, however the sleeve will close when the fitting is pressurised, therefore shutting off the flow in the tube or pipe. This is ideal for shutting off liquids containing solid particles or solid materials.

A closed valve will open when the valve is pressurised, which releases the flow of material in the tube or pipe, and then will close again when the pressure stops due to the spring in the fitting. This valve is ideal for use with liquid or gases such as air.

Features and Benefits

• Normally open (N/O) and normally closed (N/C) options
• Simple and easy to install
• Pneumatic fittings valve
• Easy to clean hygienic design
• Elastomer pinch valve sleeve shut off
• Sealing cartridge can be replaced without specialist tools
• Multiple connector variants
• Stainless steel and aluminium housing
• End cap available for demanding applications

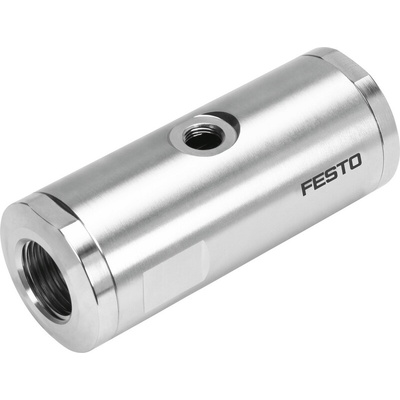

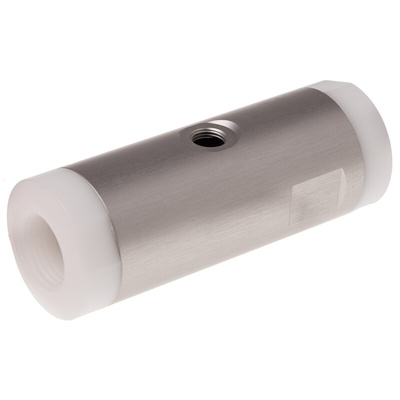

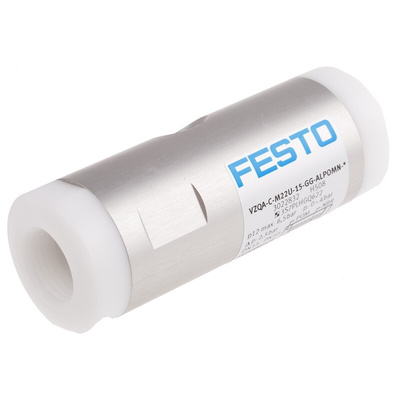

Festo VZQA Series Pinch Valve, Aluminium and Steel Alloy Body, 1/2 in Threaded Inlet Thread Size - VZQA-C-M22U-15-GG-ALPOMN-4

This innovative Festo pinch valve boasts a unique design that combines aluminium alloy and steel materials. The valve ensures reliability and top-notch performance in various applications in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Expertly crafted with a body made from aluminium alloy and steel alloy for durability and robustness
• Equipped with a threaded inlet port type and outlet port type for easy installation and use
• Female thread pinch valve with a standard thread size of 1/2 inch and a G thread standard for seamless connectivity
• Pinch valve ensures a high-traffic flow capacity suitable for industrial applications
• The innovative design prevents blockages and clogging, making it ideal for liquid and gaseous media applications

Applications

• Ideal for controlling material flows in automation systems.
• Perfect for use in controlling liquid and dusty media, solids, and substances mixtures in electronic applications.
• Suitable for industries requiring precise flow control and minimal flow resistance.

Can it be used for both liquid and gaseous media applications?

Yes, this Festo pinch valve is designed to cater to both liquid and gaseous media applications effortlessly.

Will it prevent blockages and clogging in the system?

Yes, the unique design of the pinch valve ensures minimum flow resistance, preventing any blockages or clogging issues.

Is it suitable for use in industrial applications?

Yes, this pinch valve is specifically crafted for industrial applications requiring precise flow control and reliability.
