VZWD-L-M22C-M-G14-30-V-1P4-15, Festo 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VZWD Series, 1491844, Клапан

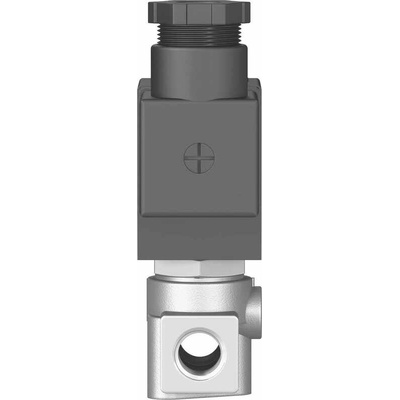

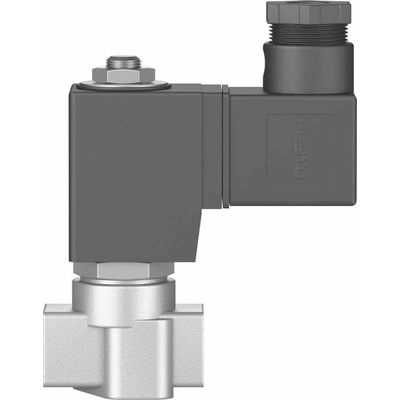

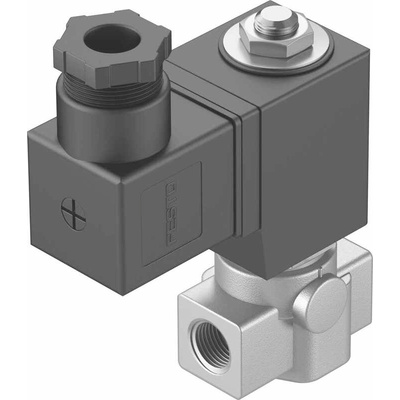

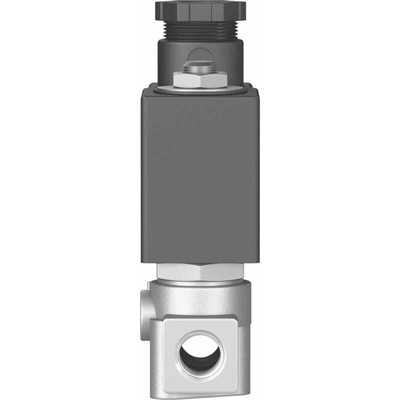

Festo Electrically Actuated Solenoid Valve, 0 to 15 Bar, G1/4 Valve Connection - VZWD-L-M22C-M-G14-30-V-1P4-15-R1

Use this solenoid valve from Festo to accurately control the flow of compressed air or fluids in your pneumatic system. It's a directly actuated unit and is suitable for high-pressure applications with low flow rates, such as those found in safety shut-off controllers. Its body is made of stainless steel, which is long-lasting and resistant to corrosion. This versatile solenoid valve can tolerate slight contamination of media and is suitable for use with inert gases, mineral oil, water and neutral fluids.

• Responds quickly in both low and high pressures ranging from 0 to 15 bar
• Mechanical spring keeps the valve tightly sealed to prevent pressure loss
• Wide operating temperature range of -10°C to +80°C for use in both hot and cold conditions
• IP65 (ingress protection) rated enclosure is shielded from dust and high-pressure water jets

Applications

• Gas venting and tank systems
• Vacuum technology
• High-pressure cleaning systems

What causes the valve on this component to open and close?

This solenoid valve uses a small electrical current to send a signal to its internal poppet mechanism, which opens or closes the valve. It has an operating voltage of 24V DC (direct current).
