VZWF-B-L-M22C-G38-135-1P4-10, Festo 2/2 Solenoid Valve - Solenoid/Pilot G 3/8 VZWF Series 24V dc, 1492111, Клапан

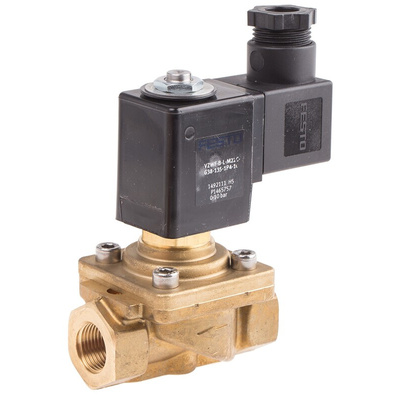

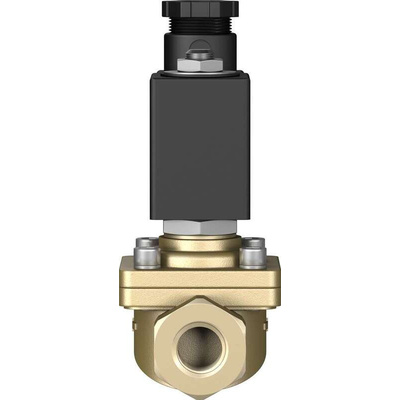

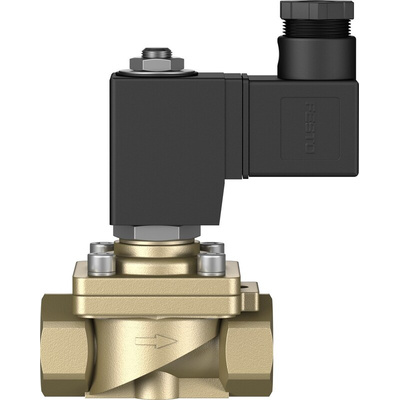

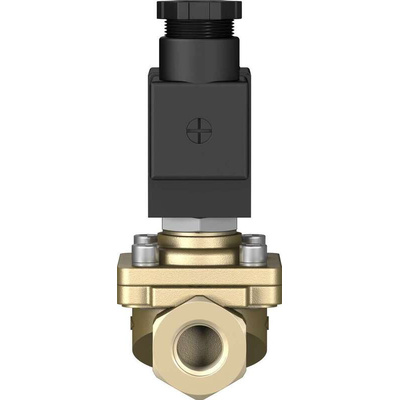

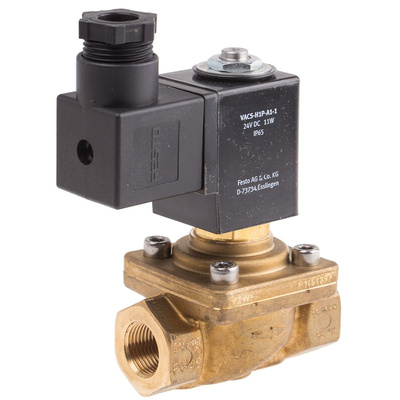

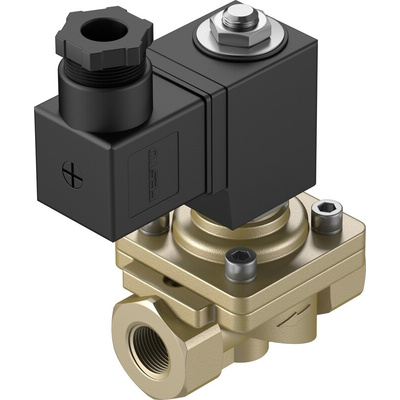

Festo Solenoid Valve, 0 to 10 Bar Operating Pressure Range, 2350L/min Maximum Flow Rate - VZWF-B-L-M22C-G38-135-1P4-10

Get a firm handle on airflow through your pneumatic system with this Festo solenoid valve. It opens when the 24V DC coil supplies an electric charge to the solenoid, causing a diaphragm to move away from the valve seat. The unit's snappy response times between 130 and 180ms mean it switches in a blink, so it keeps your system working efficiently. You can mount it without specialist tools thanks to its simple inline installation method.

Features & Benefits

• Achieves flow rates up to 2,350L/min, so it's a suitable choice for demanding applications
• Works with media including compressed air, inert gases and water, so it's a versatile option
• Industry-standard G3/8 thread size for easy compatibility with air-powered systems
• Durable cast brass body shrugs off wear and tear in harsh settings for a long service life

Applications

• Construction equipment
• Water treatment
• Manufacturing industry

Can I use this product in harsh conditions?

Yes. This valve's IP65 rating indicates it stands up to heavy dust and low-pressure water jets, so it's suitable for use in challenging conditions.
