VZWM-L-M22C-G12-F4, Festo 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/2 VZWM Series 24 V dc, 110/230 V ac, 546148, Клапан

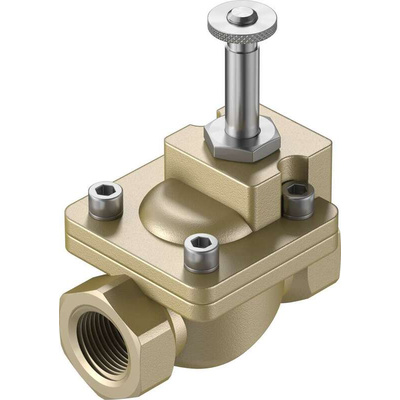

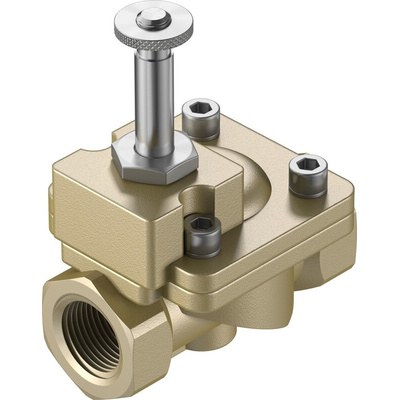

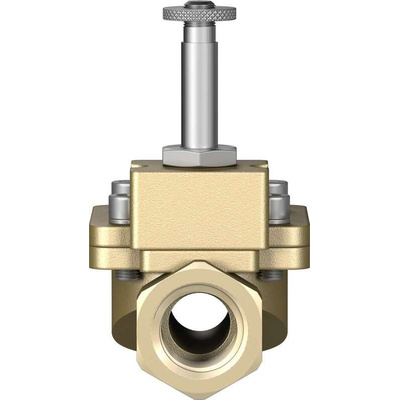

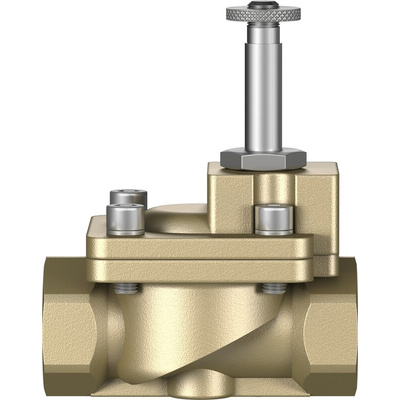

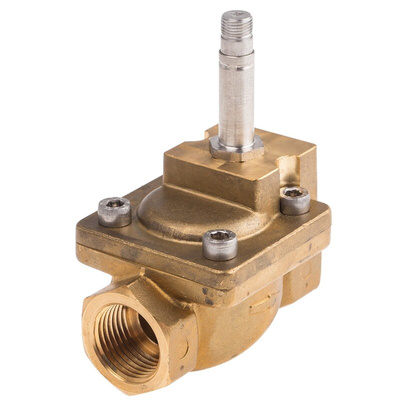

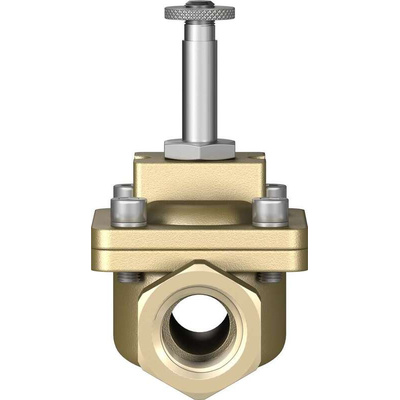

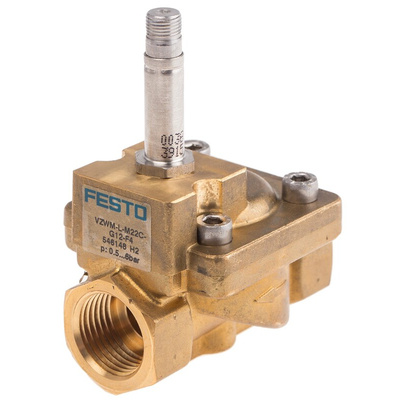

Festo Pneumatic Solenoid Valve, Poppet Type, 2/2 Function - VZWM-L-M22C-G12-F4

For a system that goes with the flow, pick this pneumatic solenoid valve from Festo. As it's compatible with gases and liquids, it's a versatile choice. You can rely on it to handle pressures of up to 6 bar in water-based setups and 10 bar when used with gas. With a high flow rate of 2400L/min, it's just the job for medium-duty and heavy-duty operations. The valve function is the NC spring-actuation type, meaning the unit snaps back into its closed position the moment you cut the connection, so there's no need to reset it manually.

• Wide operating temperature range between -10°C and +60°C for use in demanding conditions
• Brass housing is durable and resistant to corrosion to support long-lasting use
• NBR seals stop debris in their tracks and prevent leaks
• G1/2 connection port thread for compatibility with standard fittings

Applications

• Factory automation
• Manufacturing industry
• Water treatment facilities

What is a 2/2-function valve?

A 2/2-function valve like this one has two ports and two positions. The positions are open or closed, and the ports are the inlet and outlet. This kind of design is useful for everything from distribution and mixing to shut-off.

Festo VZWM-L

VZWM-L-M22C-G12-F4 Specification Sheet

Instruction Sheet - VZWM-L-M22C-G12-F4
