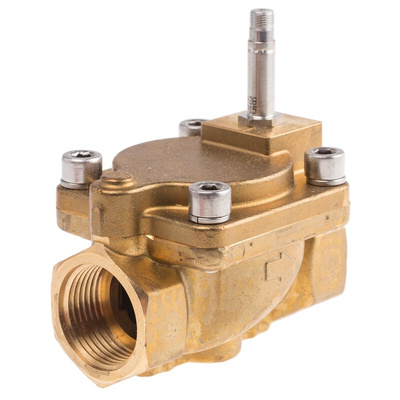

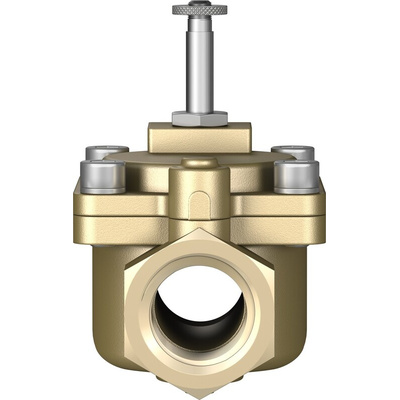

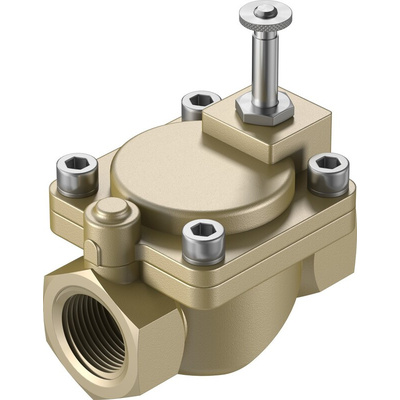

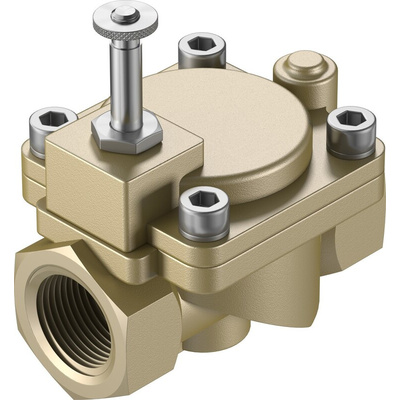

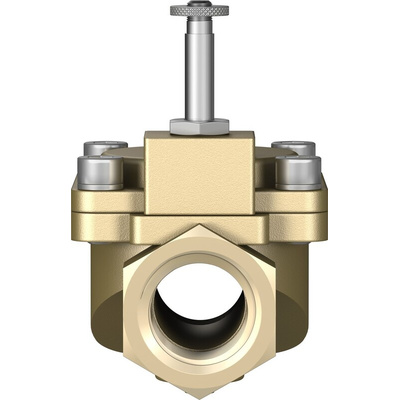

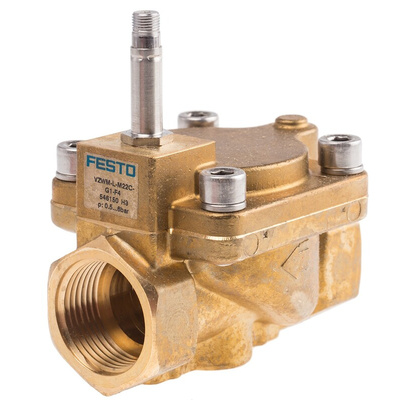

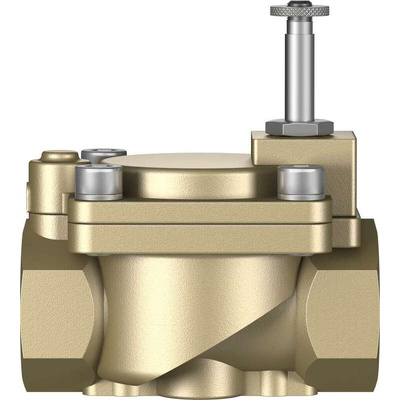

VZWM-L-M22C-G1-F4, Festo 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1 VZWM Series, 546150, Клапан

Festo Pneumatic Solenoid Valve, High Alloy Steel Plunger Tube, 27.5mm Nominal Size - VZWM-L-M22C-G1-F4

Weighing up which trusty workmate can help you regulate the movement of compressed air in your pneumatic equipment? Count on this solenoid valve from Festo. It uses an electromagnetic coil to manage fluid flow in a system, eliminating the need for manual control. Thanks to a pressure capacity of 0.5 to 6 bar for liquids and 0.5 to 10 bar for gases, this device is a good all-rounder that fits light-duty and heavy-duty applications. For added peace of mind, the spring reset function boosts safety by returning the valve to a predefined start position in the event of a power cut.

Features & Benefits

• Sturdy 1.2kg weight provides stability, preventing unwanted movement and resists vibrations
• Robust brass housing is durable and corrosion-resistant
• Nominal flow rate of 11,700L/min makes it suitable for fast-paced applications
• Performs reliably in an operating temperature range between -10°C and +60°C

Applications

• Irrigation
• Assembly lines
• Chemical processing plants
• Sewage treatment facilities

How do I link this valve to my equipment?

This unit features a G1 threaded port for simple screw-in mounting on your machine.

Festo VZWM-L

VZWM-L-M22C-G1-F4 Specification Sheet

Brochure - Core Product Range

Instruction Sheet - VZWM-L-M22C-G1-F4
