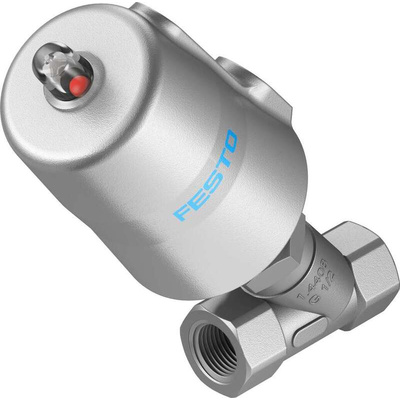

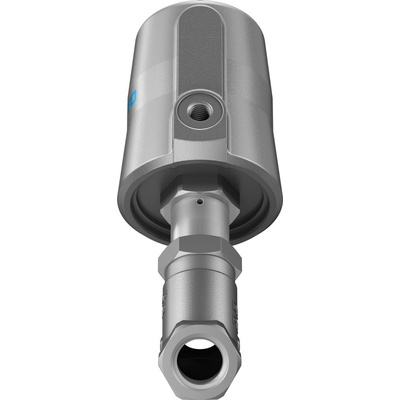

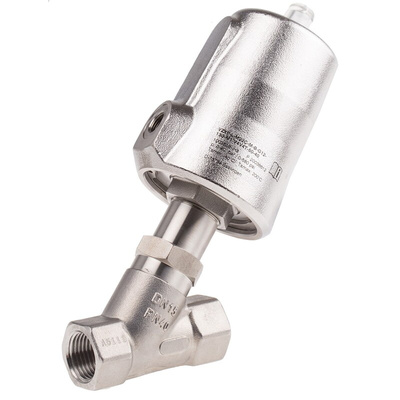

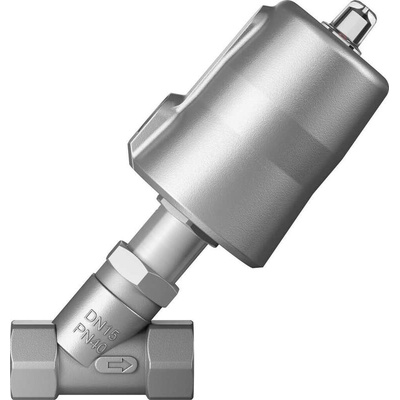

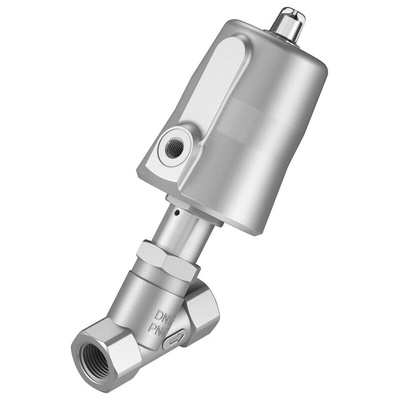

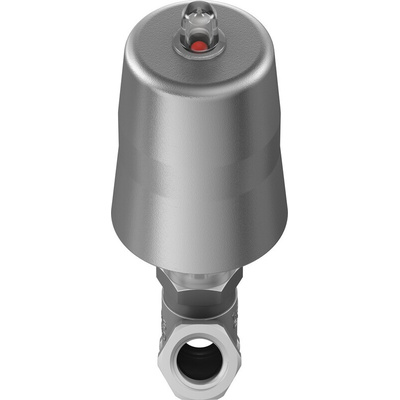

VZXF-L-M22C-M-B-G12-130-M1-V4V4T-50-40, Festo Angle Seat type Pneumatic Actuated Valve, BSP 1/2in, 40 bar, Клапан

Festo VZXF Series Two Way Angle Seat Valve

Festo VZXF series tough and durable angle seat valves for process automation applications. Perfect for all tasks involving the control of media flows, whether contaminated or highly viscous. The VZXF controls gaseous or fluid material flows in both closed and open circuits.

Features and Benefits

Suitable for most media with a viscosity of up to 600 mm²/s
High thermal resistance.
High level of safety
Two versions available:
– Closing in the direction of media flow for gaseous media
– Closing against the direction of media flow for fluid media.

Festo Pneumatic Actuated Valve, 3.3m³/h Flow Rate, 600 mm²/s Media Viscosity - VZXF-L-M22C-M-B-G12-130-M1-V4V4T-50-40

Are you looking to direct or stop the flow of liquid or gas in a pipe? Choose this pneumatic actuated valve from Festo. It's an angle-seat type, meaning it's slanted at approximately 50° for compatibility with gaseous or fluid materials at high viscosities up to 600mm²/s. The corrosion-resistant stainless steel housing has reliable chemical resistance for durability and a long service life. This unit has a spring return action, which simplifies its use by removing the need for manual operation.

Features & Benefits

• NC default valve position ensures the unit stays closed in the event of pressure loss
• High thermal resistance, as it supports materials that have a temperature range between -40°C and +200°C
• Mechanical spring reset mechanism returns the valve to its stable position if it loses signal, for enhanced safety

Applications

• Factory automation
• Process control
• Automotive industry
• Water treatment plants

How do I mount this pneumatic actuated valve?

Installation is straightforward as this is a line mounting type.

What's the flow rate of this unit?

This unit has a flow rate of 3.3m³/h for reliable continuous operation.

Festo VZXF

VZXF-L-M22C-M-B-G12-130-M1-V4V4T-50-40 Specification Sheet

Instruction Sheet - VZXF-L-M22C-M-B-G12-130-M1-V4V4T-50-40
