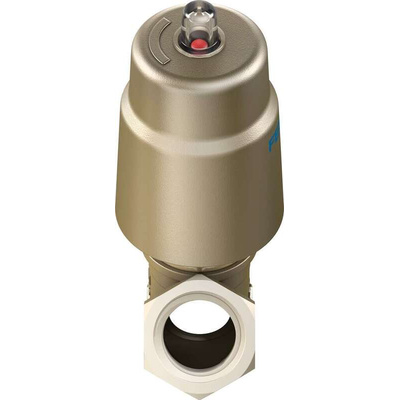

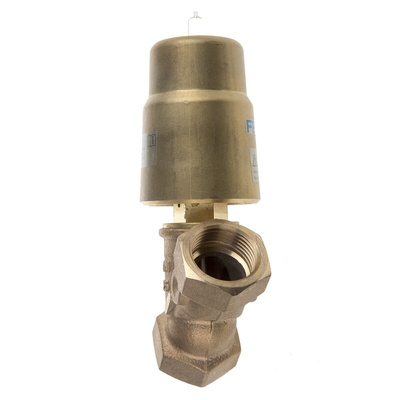

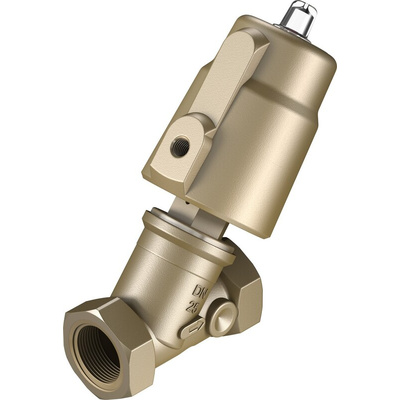

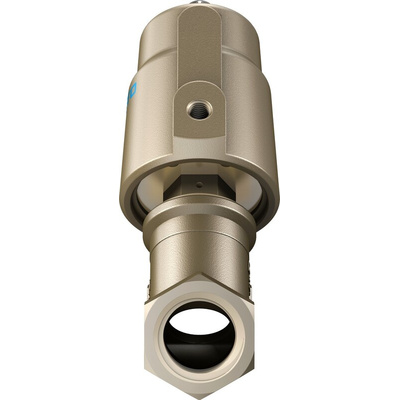

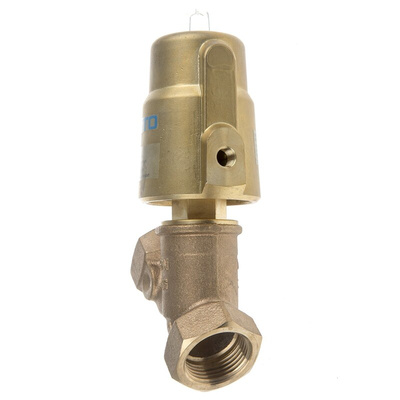

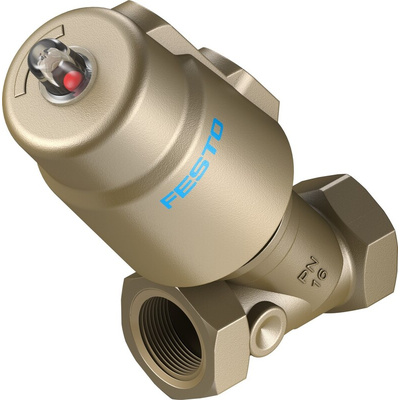

VZXF-L-M22C-M-B-G1-230-H3B1-50-10, Festo Angle Seat type Pneumatic Valve, BSP 1in, 10 bar, Клапан

Festo Angle Seat Valve, 6 to 10 Bar, 1 BSP Connection Thread - VZXF-L-M22C-M-B-G1-230-H3B1-50-10

Use this angle-seat valve from Festo for pneumatic applications where media may be contaminated or highly viscous. It works with liquids with a viscosity up to 600mm²/s (square millimetres per second), and it's insensitive to steam, making it suitable for use with most liquids and gases. This valve has high chemical and thermal resistance for an extended service life and reduced maintenance time. A low flow resistance improves the performance of your pneumatic system, even in harsh industrial conditions.

• Nitrile rubber (NBR) spindle seal that's hardwearing and resistant to abrasion
• Brass drive head is durable and corrosion-resistant
• Wide operating temperature range of -10°C to +60°C for use in demanding environments
• Versatile component that can be assembled in any position

Applications

• Automated packaging systems
• Automotive industry
• Agricultural machinery

What's the advantage of an angle-seat valve?

Angle-seat valves are very versatile and offer a high flow rate with minimal pressure loss. They're also resistant to backflow and can be used with hot liquids and gases.

What size is this valve?

This valve is 23mm long, so it's well suited to pneumatic circuits where space is constricted.

Festo VZXF
