VZXF-L-M22C-M-B-G2-430-H3B1-50-3, Festo Angle Seat type Pneumatic Actuated Valve, BSP 2in, 3 bar, Клапан

Festo Angle Seat Pneumatic Valve, G2 Process Valve Connection - VZXF Series - VZXF-L-M22C-M-B-G2-430-H3B1-50-3

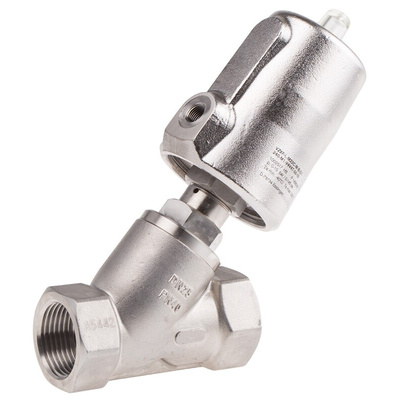

If you need a reliable way to regulate the flow of liquid or compressed air in a pneumatic system, choose this angle seat valve from Festo. It's suitable for high-viscosity media (up to 600 mm²/s) and applications in which the medium may be contaminated. This is a pneumatically actuated valve with a 'normally closed' (NC) position that stops the flow of liquid or air automatically when pressure is removed. It provides a high flow rate of 23 m³/h.
The valve has a robust gunmetal (red brass) housing for durability and a nitrile butadiene rubber (NBR) spindle seal for reliable resistance to corrosion. This makes for a long service life with minimal maintenance. The seat seal is made from soft polytetrafluoroethylene (PTFE) to prevent leakage and allow an operating temperature range of -10°C to +80°C.

• Operating pressure of 6 bar to 10 bar for heavy-duty applications
• 'Normally closed' (NC) default valve position so you can use it as a safety valve
• Spring return type with thread size of 2 in

Festo VZXF

VZXF-L-M22C-M-B-G2-430-H3B1-50-3 Specification Sheet

Instruction Sheet
