VZXF-L-M22C-M-B-G34-160-H3B1-50-16, Festo Angle Seat type Pneumatic Actuated Valve, BSP 3/4in, 116 bar, Клапан

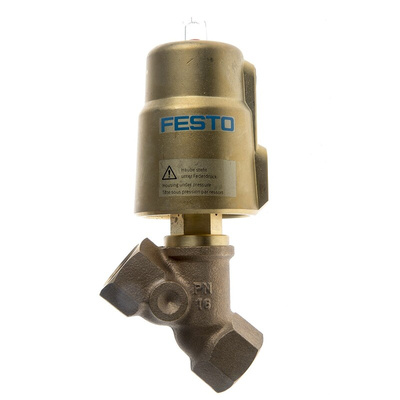

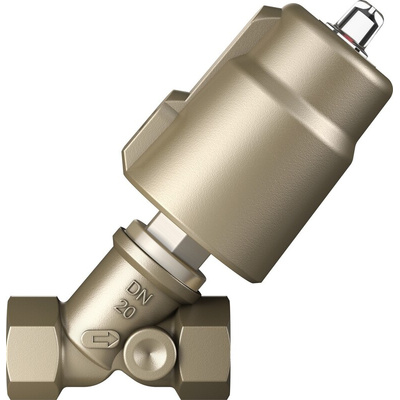

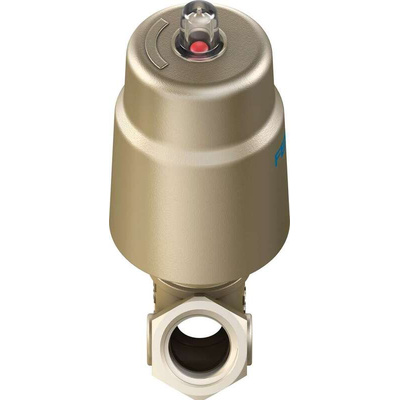

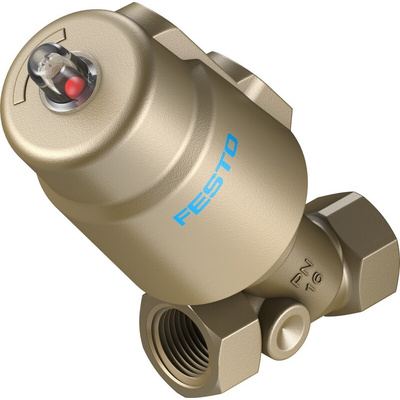

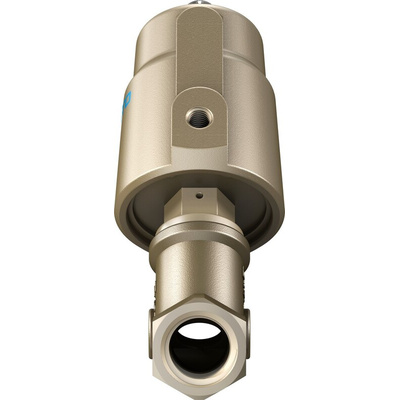

Festo Angle Seat Pneumatic Valve, 16 Bar, G3/4 - VZXF-L-M22C-M-B-G34-160-H3B1-50-16

This Festo angle seat valve offers a high flow rate when regulating the discharge of contaminated or highly viscous media and hot steam. It's externally actuated by a direct supply of compressed air, which raises the piston at the same time as the valve disc opens the valve. The unit's sturdy construction provides a 50° valve seat angle to control the flow of media, such as vapour, inert gases and mineral-oil-based hydraulic lubricant. You can rely on smooth and efficient flow through your system as there's no pressure differential or flow resistance.

• Can be assembled in any position for versatile use
• Durable brass construction ensures low maintenance needs
• Can handle harsh industrial environments with a maximum working pressure of 116 bar and maximum operating temperature of +80°C

Applications

• Food and beverage processing
• Oil and gas industry
• Water and sewage industries

Does this valve improve safety?

This Festo valve features a normally closed (NC) valve position, which means it will only open when actuated. That means if there's a pressure loss in the system, the valve stays closed and ensures there's no leakage.

Festo VZXF

VZXF-L-M22C-M-B-G34-160-H3B1-50-16 Specification Sheet

Instruction Sheet - VZXF-L-M22C-M-B-G34-160-H3B1-50-16
