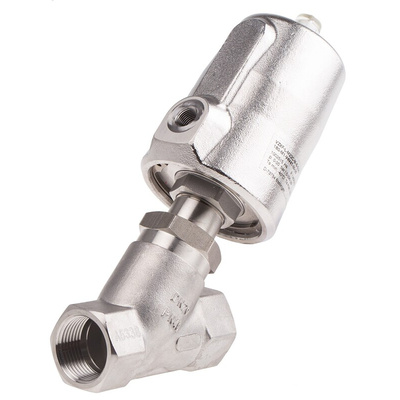

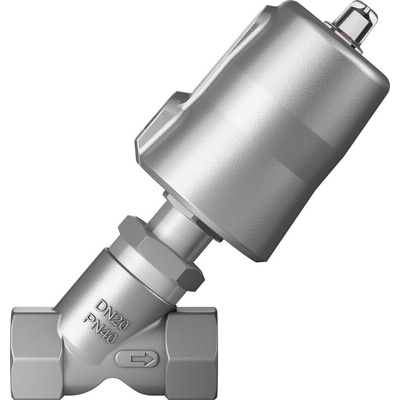

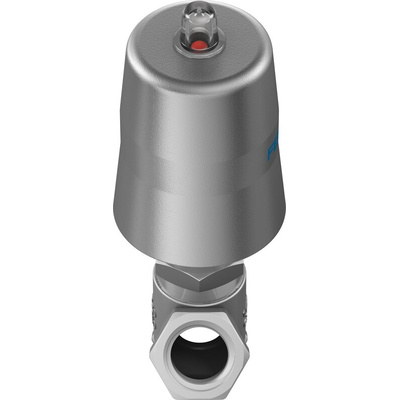

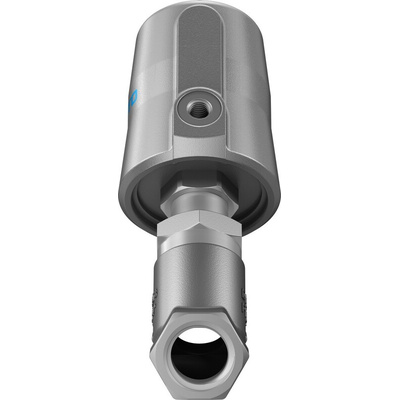

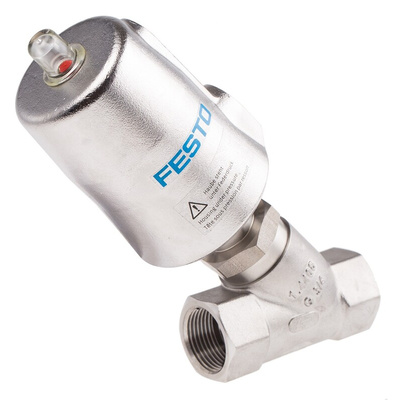

VZXF-L-M22C-M-B-G34-180-M1-V4V4T-50-20, Festo Angle Seat type Pneumatic Actuated Valve, BSP 3/4in, 20 bar, Клапан

Festo 2-Way Angle Seat Valve, 6 to 10 Bar, 3/4 BSP Connection Thread - VZXF-L-M22C-M-B-G34-180-M1-V4V4T-50-20

Use this two-way angle seat valve from Festo to control the flow of gases and liquids in rigid piping systems. This reliable unit needs no pressure differential between an inlet and outlet, for convenience and versatility. It's also insensitive to steam and slightly contaminated media, which means it performs efficiently in factory settings. An operating temperature range of -10°C to +60°C makes this unit suitable for use in demanding industrial environments.

• Wide operating pressure range of 6 to 10 bar for versatility
• Robust stainless steel casing is resistant to corrosion and shock for longevity
• Suitable for liquids and gases that have a viscosity up to 600mm²/s (square millimetres per second), so can be safely used in demanding applications

Applications

• Paper and pulp mills
• Hoisting and lifting equipment
• Industrial automation

Does this valve have a normally closed or normally open function?

This Festo angle seat valve has a normally closed function, which means that the valve is closed in the event of pressure loss in the control circuit.

What are this valve's seals made from?

This valve has polytetrafluoroethylene (PTFE) seals, which are long-lasting and resistant to water and heat.

Festo VZXF

VZXF-L-M22C-M-B-G34-180-M1-V4V4T-50-20 Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - VZXF-L-M22C-M
