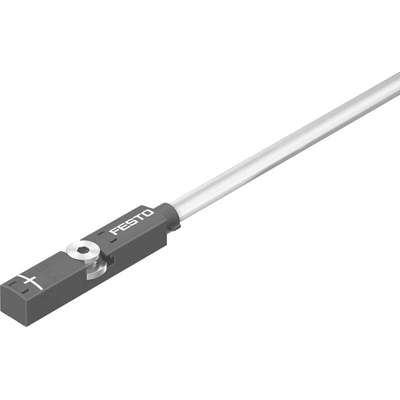

SMT-8M-A-PS-24V-E-0,3-M8D, Festo Magneto Resistive Pneumatic Position Detector, IP65, IP68, IP69K, 24V dc, NO Operation, Датчик

FESTO SMT/SME-8M Series T-Slot Proximity Sensors

Festo SMT/SME-8M Series T-Slot proximity sensors are fully compatible with all Festo cylinders that have T-slots. The SME/SMT series provide a reliable sensing solution in a variety of switching options. Sturdy central mounting guarantees that the sensor is securely screwed into the slot. Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning.
All sensors have cables suitable for use in energy chains and on robots as standard. This ensures maximum dependability and process reliability.

• Compatible with all Festo T-Slots
• 24 V dc Operating Voltage
• Non-contacting or contacting sensing

SMT-8M-A-PS-24V-E-0,3-M8D Proximity Sensor from FESTO offers you a sensible and clever solution with quick instalment. It is economical and versatile thanks to wide-ranking use. Systematically safer due to additional detent clips on the cable outlet side providing extra cable protection against mechanical damage.

Features and Benefits

• Mounting Type - Tightened


• Switch output - PNP


• Cable length – 0.3m


• Electrical connection 1, connection type -Cable with plug


• Electrical connection 1, connection technology - M8x1 A-coded to EN 61076-2-104


• Electrical connection 1, number of pins/wires - 3


• Conforms to standard - EN 60947-5-2

Festo SMT/SME-8

SMT-8M-A-PS-24V-E-0,3-M8D Specification Sheet
