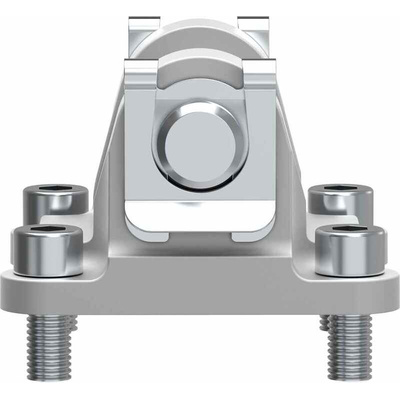

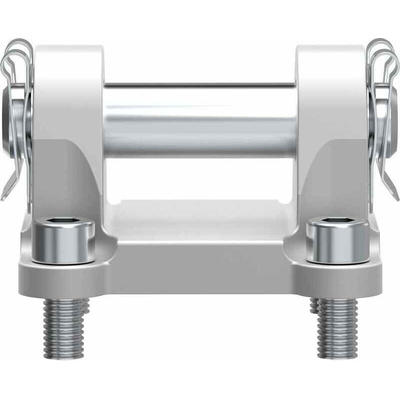

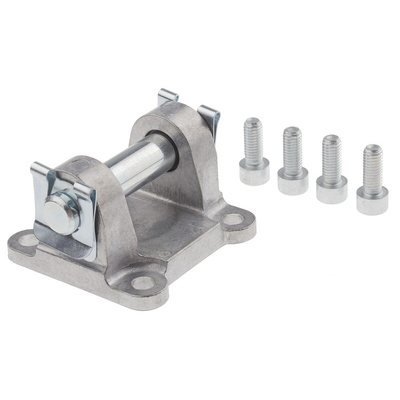

Festo Flange SNCB-63, For Use With DNC Series Standard Cylinder, To Fit 63mm Bore Size

Festo Flange For Use With DNC Series Standard Cylinder - SNCB Series - SNCB-63

Turn to this swivel flange from Festo to mount cylinders that need to pivot during the work cycle. Its unique design lets it absorb force along the centre line and actuate loads that travel through an arc. The robust construction of aluminium die-cast metal ensures the component has good resistance to rust, so it's a reliable choice for use in demanding industrial environments. The flange comes with fixing screws made of galvanised steel for excellent strength and corrosion resistance, ensuring the unit stays securely mounted and withstands heavy-duty applications. You can use this swivel flange with Festo's DNC series of double-acting cylinders for automation processes.

• Broad ambient temperature range of -40°C to +90°C for use in extreme environments
• Copper-free construction for improved corrosion resistance
• Galvanised spring-steel lock for secure fastening

Application Information

• Manufacturing and assembly lines
• Construction industry
• Food processing systems

When should I use this type of flange?

This swivel flange mounts onto end caps. Flanges of this type are recommended when the major force applied by the load will result in thrust (push), rather than compression (pull) stresses.
