Festo Flange SNCS-32, For Use With DNC Series Standard Cylinder, To Fit 32mm Bore Size

Festo Flange, For Use With DNC Series Standard Cylinder - SNCS-32

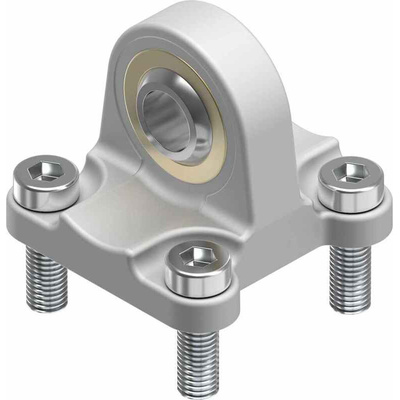

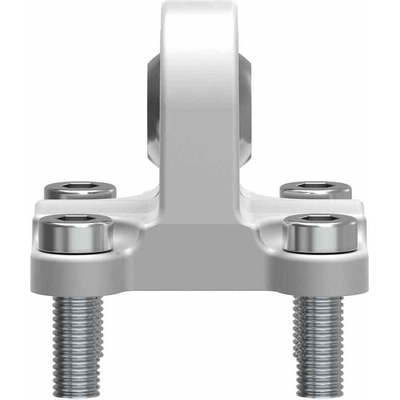

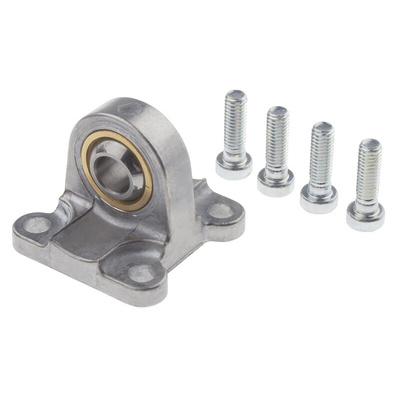

This swivel flange from Festo is on hand for mounting cylinders that need to pivot during the automation process. It features a durable design that allows it to absorb force along the centreline and actuate loads as they travel through an arc. The robust construction of aluminium die-cast metal and galvanised steel ensures the component has superior resistance to rust and corrosion. It can withstand operating temperatures between -40°C and +150°C, so it's durable even in tough industrial environments. The swivel flange is designed for use with standard cylinders from Festo's DNC series.

• Fits bore size of 32 mm
• Unit weight of 86 g
• Rod end bearing made from steel and polytetrafluoroethylene (PTFE) material

Range Information

• DNC-series standard cylinders are part of Festo's core range of products for automation tasks
• Thanks to the modern, consistent design, DNC series cylinders save up to 11% more space compared to ordinary standards-based cylinders
• The series includes cylinders in tandem and cylinder and valve combinations, as well as cylinders with clamping units and end-position locking

Festo DSBC

SNCS-32 Specification Sheet

Instruction Sheet - SNCS
