SV-3-M5, Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve SV Series, Metric M5, M5, 6817, Клапан

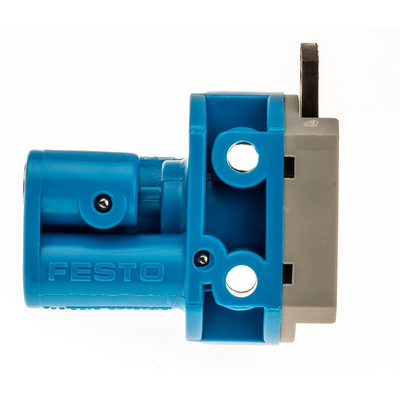

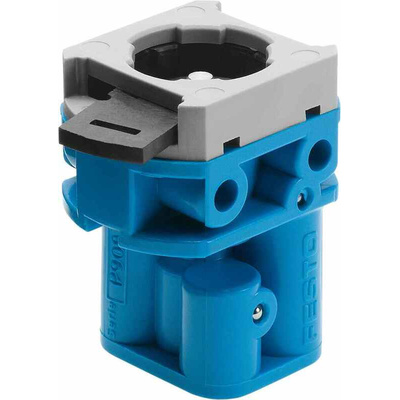

Festo Pneumatic Manual Control Valve - SV Series - SV-3-M5

This manually operated pneumatic control valve by Festo combines functionality and simplicity. The valve opens immediately when actuated, offering accuracy when fast response times are needed. It's also compatible with a variety of attachments. A controlled flow of air ensures smooth operation with every use. The three-way, two-position valve is soft-sealing and durable, so you can expect long-lasting quality. A mechanical spring reset makes it easy to use again and again. Three-port valves like this one are often used to fill and vent single-acting cylinders.

• SV panel-mount valve with M5 connection port
• Robust plastic body
• Maximum operating pressure of 8 bar
• Operating temperature of -10 °C to +60 °C
• Ultra-lightweight at 40 g
• Single solenoid valve with closed monostable function
• 2 positions, 3 ports
• No overflow between channels during switching
• Airflow provides some self-cleaning during operation
• Metric thread standard
• RoHS (Restriction of Hazardous Substances) compliant

• The Festo SV range of modular pneumatic valves offers long-lasting service thanks to sturdy brass and plastic construction
• Each valve is compatible with pushbutton actuators, mushroom pushbuttons, selector switches and toggle switches
• A reliable coupling system ensures quick mounting and dismounting
• Items in this range meet or exceed the requirements of the ISO 9001 Standard for Quality Management and the ISO 14001 Standard for Environmental Management
