VSNC-FC-M52-MD-G14-F8-1B2, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VSNC Series 24V dc, 577295, Клапан

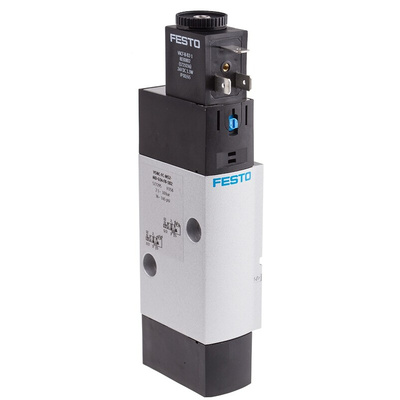

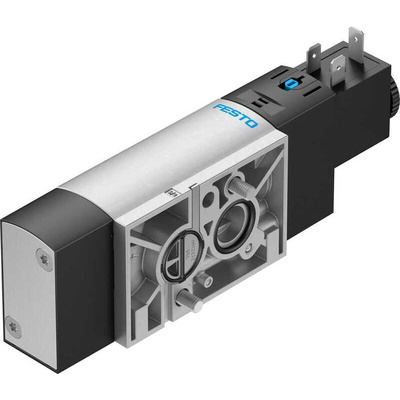

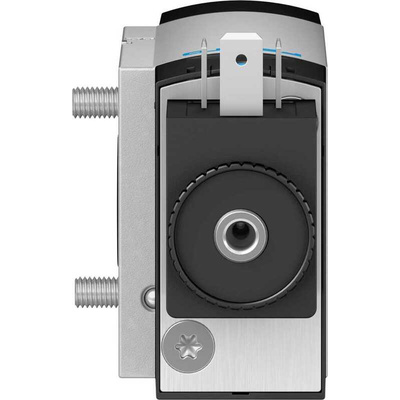

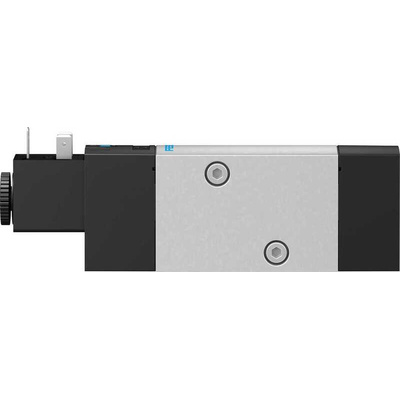

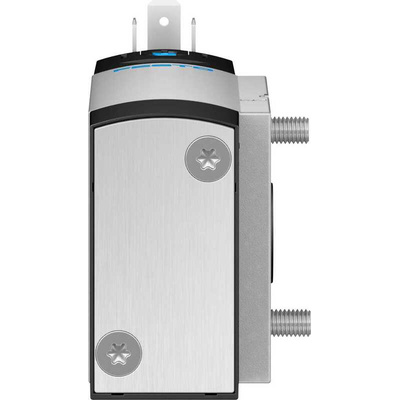

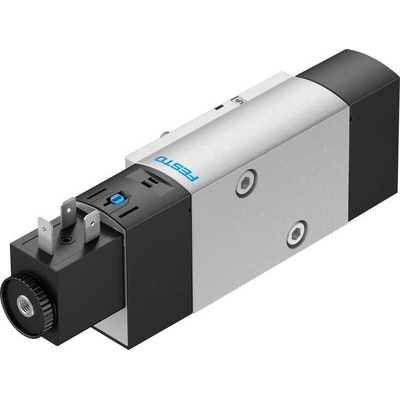

Festo 5/2 Pneumatic Solenoid Valve, G 1/4, 24V DC - VSNC Series - VSNC-FC-M52-MD-G14-F8-1B2

This versatile pneumatic solenoid valve from Festo’s VSNC series features a pilot valve, so you can use it in a wide range of applications. Use it with equipment that regulates the flow of liquids via both single and double linear actuators. By turning the attached valve seal 180°, you can switch the unit from a 3/2-way to a 5/2-way valve. You'll find this solenoid valve regulating pneumatic cylinders and machines that need swift response times and a steady flow of liquid media.

• Wide operating temperature range of -20°C to +60°C for use in intense environments
• Corrosive-resistant aluminium alloy housing promotes long term use
• Standard G 1/4 pneumatic connection point thread for compatibility with standard components
• Compact size and 380g weight for portability and easy storage
• Five ports for two-way configuration with additional exhaust valve

Application Information

• Manufacturing installations
• Industrial pumps
• Packaging equipment
• Cylinders

How fast does this pneumatic solenoid valve reset?

The solenoid valve has an internal mechanical solenoid spring. This enables a swift reset to its original position and also helps prevent overflow and malfunction.

Festo VSNC

VSNC-FC-M52-MD-G14-F8-1B2 Specification Sheet

Instruction Sheet - VSNC-FC-M52-MD-G14-F8-1B2
