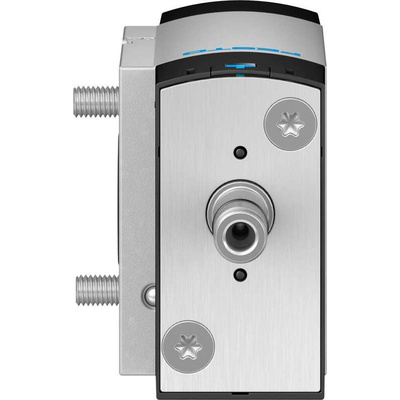

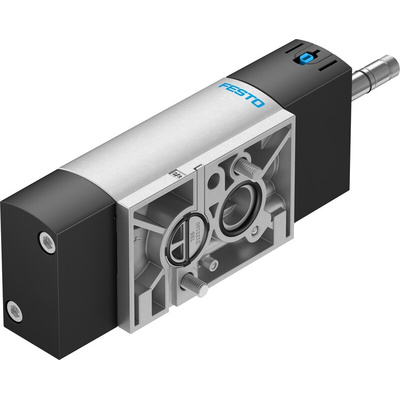

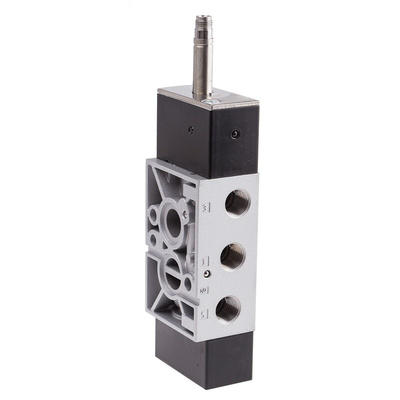

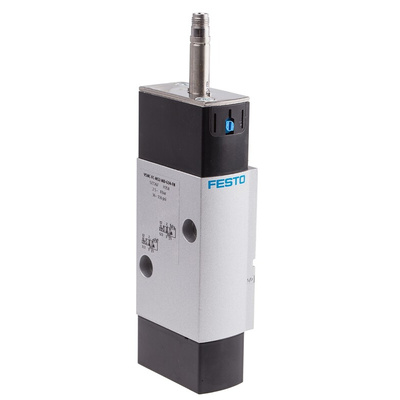

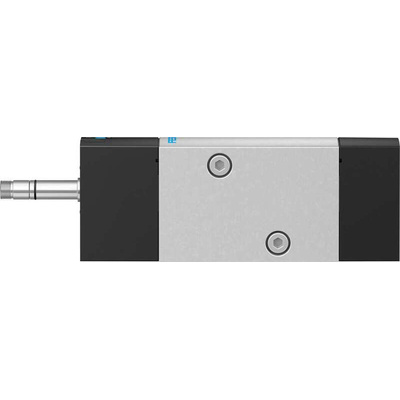

VSNC-FC-M52-MD-G14-FN, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VSNC Series 24V dc, 577267, Клапан

Festo Pneumatic Solenoid Valve, 2.5 to 8 Bar Operating Pressure Range, Convertible 5/2-Way or 3/2-Way Valve Type - VSNC-FC-M52-MD-G14-FN

Looking for a handy way to control fluid in your industrial system? This pneumatic solenoid valve from Festo puts you in control of flow. When combined with a solenoid coil, it uses an electrical signal to adjust the airflow direction by moving its built-in poppet mechanism. Its seals are made of abrasion-resistant NBR to prevent leakage in the case of accidental knocking. The wrought-aluminium-alloy housing withstands corrosion, so you can use this valve in humid or damp work areas.

• Mountable in any position to provide you with a flexible setup
• High standard nominal flow rate of 1250L/min, so it's suitable for heavy-duty applications
• G1/4 thread and NAMUR pattern on pneumatic terminals allow for use with standard connecting components

Applications

• Automation and control systems
• Large industrial valve actuation
• Pneumatic tools

Can I use this valve in harsh environments?

Yes, you can. This pneumatic solenoid valve is designed to withstand temperatures between -20°C and +60°C, so it's just the thing for harsh work environments.

Festo VSNC

VSNC-FC-M52-MD-G14-FN Specification Sheet

Brochure - Simply Part Of The Solution

Instruction Sheet - VSNC-F
