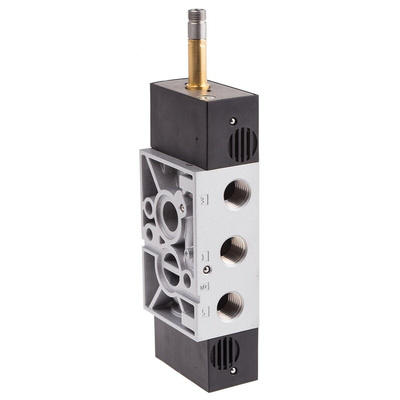

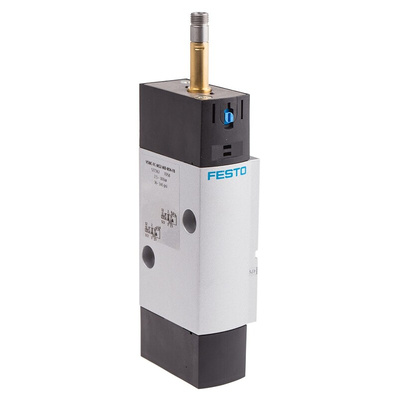

VSNC-FC-M52-MD-N14-F8, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Spring NPT 1/4 VSNC Series 24V dc, 577262, Клапан

FESTO VSNC Series Solenoid Valves - Pneumatic Flow Control Valve

Introducing our VSNC solenoid valve series from FESTO. The series feature valves that are called "Pilot Valves". These Valves are used for single and double acting quarter turn linear actuators. The valves are convertible and could be changed from 3/2 way to 5/2 way through turning the seal 180°. This feature allows you to operate single or double acting actuators with one valve. These solenoid valves meet the highest safety standards.

Features and Benefits

• Port pattern in accordance with VDI/VDE 3845 - Such as DRD/DRE, DAPS, DFPB and DLP
• Mounting can be achieved on actuators without a NAMUR interface. (must be with appropriate accessory - i.e.: Connection Kit)
• A great solution for process automation
• Mechanical springs (single-solenoid valves) ensure safe switching to the initial position - in the event of a power failure
• Conversion from 3/2-way to 5/2-way valve through turning the seal, single solenoid
• Facilitates single or double acting actuators, controlled with one valve
• Durable and robust
• Mechanical spring reset
• Operating temperature ranges between -20°C to 60°C
• They can be used in process automation

Did you know?

Solenoid valves generate a magnetic field from an electric current, in turn they operate a mechanism used to regulate the opening of fluid flow valves.

Festo VSNC

VSNC-FC-M52-MD-N14-F8 Specification Sheet
