VUVG-LK10-B52-T-M7-1R8L-S, Festo 5/2 Solenoid Valve - Solenoid/Solenoid M7 VUVG Series 24V dc, 8042552, Клапан

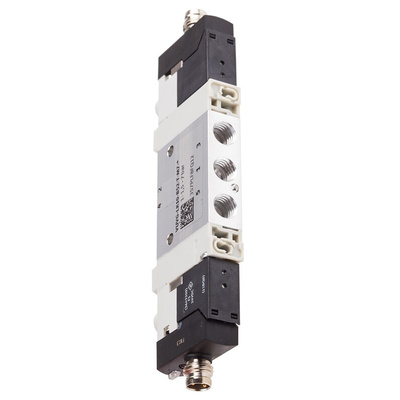

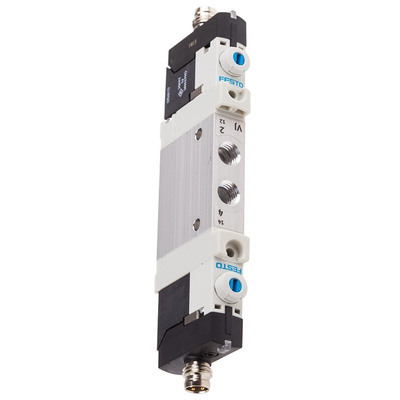

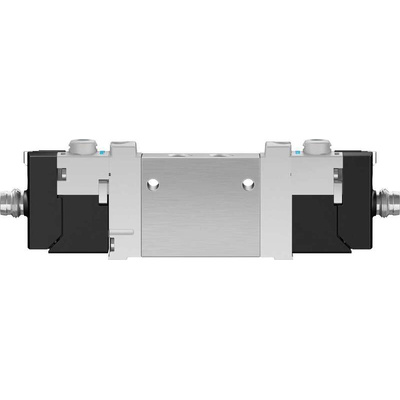

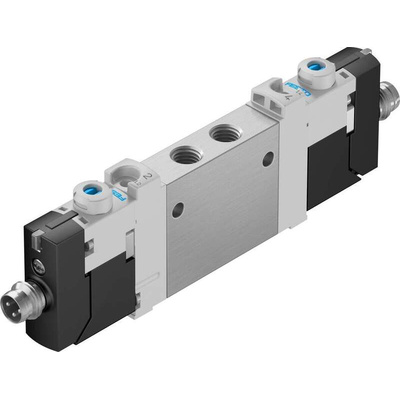

Festo Solenoid Valve, 5/2 Way, M7 Connection - VUVG-LK10-B52-T-M7-1R8L-S

Need to build a pneumatic system that can handle a high flow rate without taking up a lot of space? This solenoid valve from Festo combines compact dimensions of 98 (L) x 10 (W) x 34mm (H) with a maximum flow rate of 195 L/min. The sturdy aluminium alloy construction means you can use it at pressures up to a maximum of 10 bar. Depressurisation won't be a problem, thanks to its positive locking seals. If you need to mark your valves for quick identification, you can use it with the snap-on inscription label holder (203-8825).

Features & Benefits

• Integrated 360° LED display for fast troubleshooting
• Retaining mounting screws ensure the valve stays securely in place
• Easily replaceable valves for efficient servicing
• Operating temperature range of -5°C to +50°C makes it suitable for harsh industrial environments

Applications

• Factory automation
• Petrochemicals sector
• Materials handling

How does a solenoid valve work?

Solenoid valves use an energised magnetic coil to open or close. They need hardly any wiring or effort to install compared with other types of valves. This, along with their versatility, makes them a popular choice for regulating flow in pneumatic systems.
