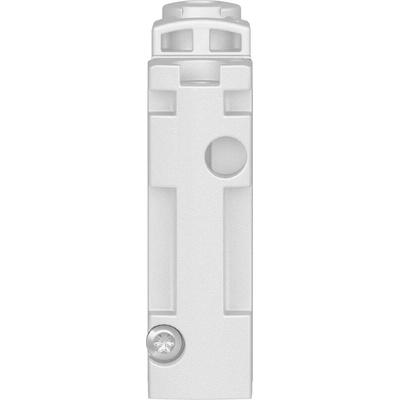

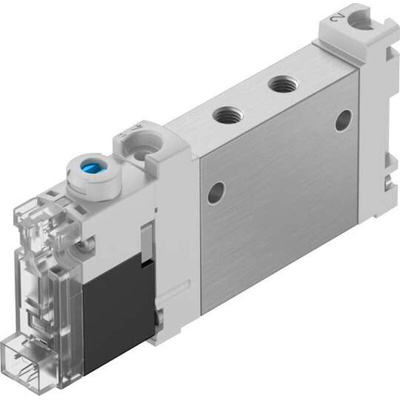

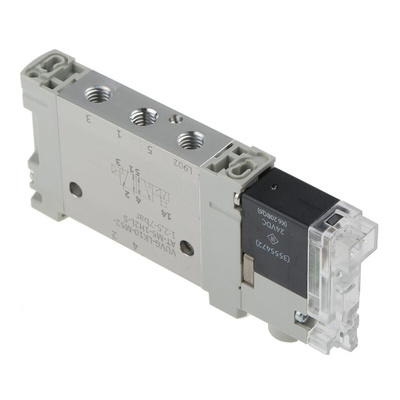

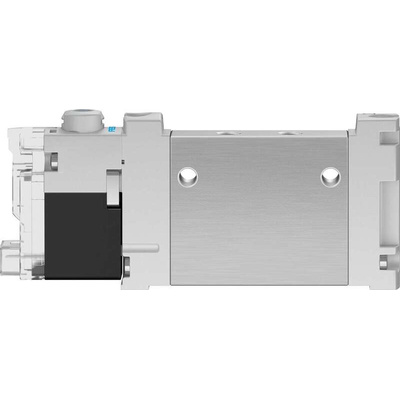

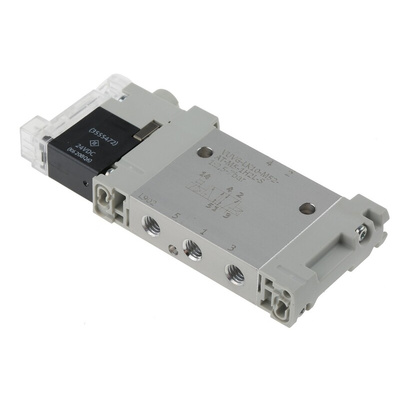

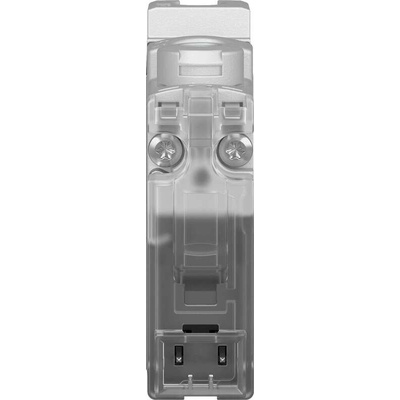

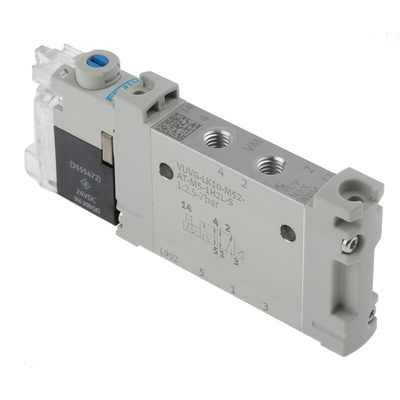

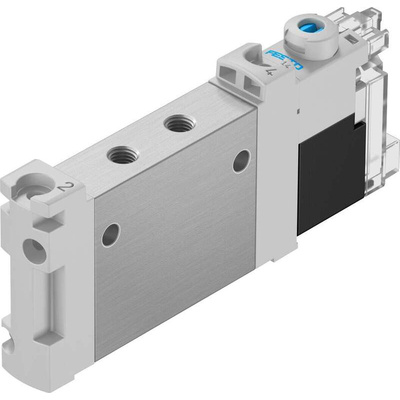

VUVG-LK10-M52-AT-M5-1H2L-S, Festo 5/2 Solenoid Valve - Solenoid/Spring Metric M5 VUVG Series 24V dc, 8042539, Клапан

Festo Solenoid Valve, 10mm Valve Size, 2Hz Maximum Switching Frequency - VUVG-LK10-M52-AT-M5-1H2L-S

Make pneumatic system management a breeze with this solenoid valve from Festo. Its 5/2 monostable function means it returns to its rest position when not actuated, so it resets itself in the event of unexpected shutdown, for enhanced safety. With a 14ms switch-on time, it's quick to respond and highly efficient. The robust aluminium-alloy housing withstands mechanical stress and abrasion, so it won't buckle under pressure. NBR seals maintain pressure and defy corrosion to avoid leakage problems. Thanks to its standardised M5 thread connection and inline mounting design, this component can be installed in the blink of an eye.

Features & Benefits

• Versatile operating pressure range between 2.5 and 7 bar, so it's suitable for standard pneumatic systems
• Maximum flow rate of 195L/min to handle demanding applications
• Operating temperature range between -5°C and +50°C, so it's ideal for use in harsh industrial conditions

Applications

• Medical equipment
• Pharmaceutical manufacturing
• Automotive industry

What does an IP40 rating mean?

This unit has an IP40 rating, which means it's protected from tools or wires greater than 1mm in size.

How much power does this unit consume?

This solenoid consumes 0.7W of power, making it an energy-conscious choice.

Festo VUVG

VUVG-Series Order Code Overview

VUVG-LK10-M52-AT-M5-1H2L-S Specification Sheet
