VUVG-LK14-M52-AT-G18-1H2L-S, Festo 5/2 Solenoid Valve - Solenoid/Spring G 1/8 VUVG Series 24V dc, 8042563, Клапан

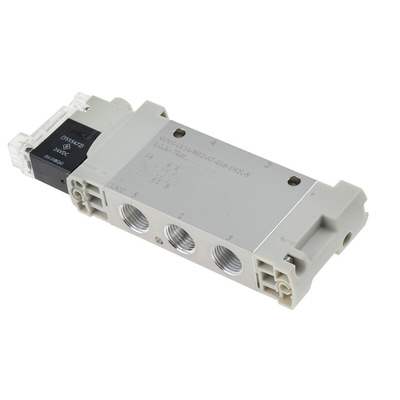

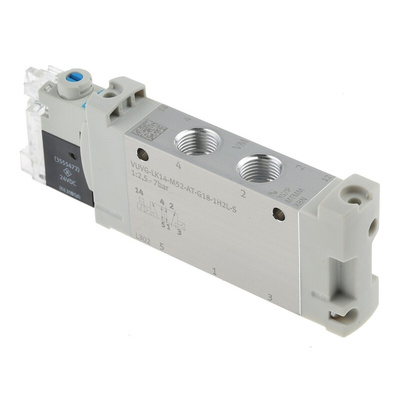

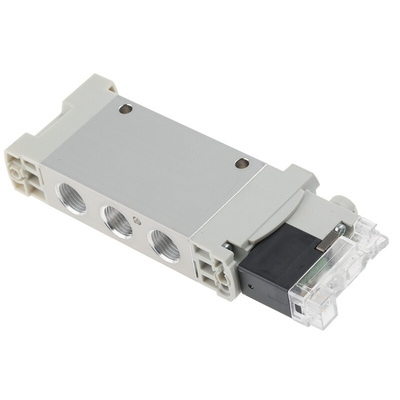

Festo Solenoid Valve, Throttleable Exhaust Function, 14mm Valve Size - VUVG-LK14-M52-AT-G18-1H2L-S

Want a pneumatic setup that gets on with the job? Choose this solenoid valve from Festo for effective automated control. It has a spring-action mechanism to manage the flow of compressed air around your system. As it turns on in only 14ms, it's a responsive piece of kit. NBR seals resist corrosion and keep pressure locked in to make sure operations run smoothly, even in contaminated settings. Thanks to the sturdy aluminium-alloy housing, this valve has the mettle to withstand tough environments, so you can be sure of long-term performance.

Features & Benefits

• 660L/min flow rate suits demanding industrial applications
• Operating pressure range between 2.5 and 7 bar, so it's versatile
• 0.7W power consumption makes it an energy-conscious choice
• Manual override lets you take control if there's a power failure

Applications

• Textile industry
• Food and drinks production
• Industrial automation

What type of thread does the valve's connection port have?

The connection port features a standard G1/8 thread for wide compatibility.

Can I use this device in harsh industrial conditions?

Yes. This valve operates in a temperature range between -5°C and +50°C, so it withstands harsh industrial conditions.

Festo VUVG

VUVG-LK14-M52-AT-G18-1H2L-S Specification Sheet
