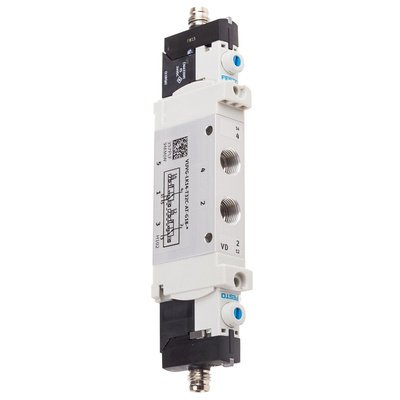

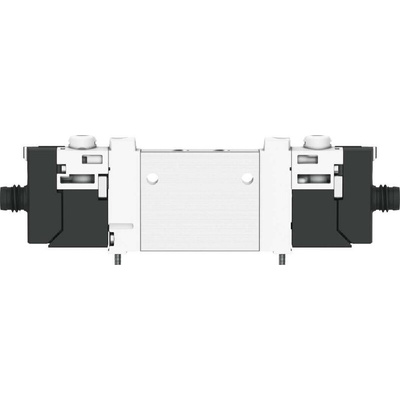

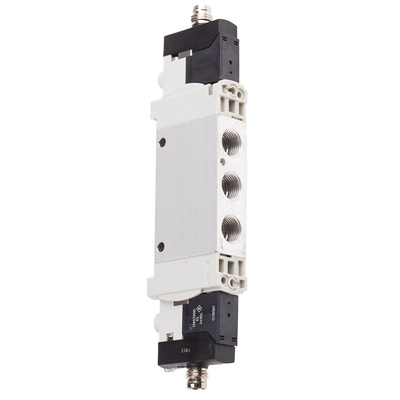

VUVG-LK14-T32C-AT-G18-1R8L-S, Festo 3/2 Solenoid Valve - Solenoid/Spring G 1/8 VUVG Series 24V dc, 8042566, Клапан

Festo Solenoid Valve, Aluminium Alloy Body, 2Hz Maximum Switching Frequency - VUVG-LK14-T32C-AT-G18-1H2L-S

Regulate air circulation around your pneumatic system with this solenoid valve from Festo. Its straightforward 3/2 normally closed configuration means it has three ports and two flow positions, and opens when it's electrically powered, ensuring a smooth switching process. Thanks to an operating pressure range between 1.5 and 7 bar, it's just the job for applications running at low to medium pressure. As the unit has a throttleable function, you can discharge excess pressure through its exhaust port, keeping your equipment stable. This valve consumes just 0.8W of power, meaning it's an energy-efficient option.

Features & Benefits

• 14mm valve size fits into compact setups
• LED indicator provides clear visual feedback for effective troubleshooting
• IP40 rating indicates that it’s finger-safe and protected from tools and wires bigger than 1mm
• Wrought aluminium alloy body resists corrosion and impacts to deliver long-lasting performance
• Maximum flow rate of 570L/min suits fast-paced tasks

Applications

• Filling and packaging machinery
• Conveyor systems
• Mining equipment
• Medical devices

What temperature range can this device handle?

This valve performs reliably in an ambient temperature range between -5°C and +50°C, so it's a practical choice for demanding conditions.
