VUVS-LK20-M32C-AD-G18-1C1-S, Festo 3/2 Solenoid Valve - Solenoid/Solenoid G 1/8 VUVS Series 24V dc, 8043213, Клапан

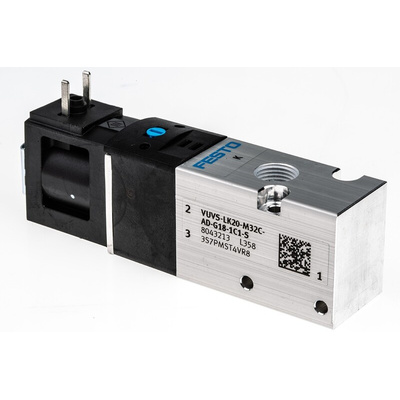

Festo 3/2 Solenoid Valve, G 1/8, 8 Bar - VUVS-LK20-M32C-AD-G18-1C1-S

Control your pneumatic system's air flows with this solenoid valve from Festo. It's a monostable, normally closed valve – use it individually or as part of a manifold. It'll open once actuated and return to its closed position when power is stopped. The unit is electrically activated using a type-C connection and can be used to regulate cylinders, turbines, tubes and diaphragms. It comes pre-assembled to make installation fuss-free, and the housing is made from a robust, corrosion-resistant aluminium alloy that delivers impressive durability and reliability.

• 3/2 port configuration and inline mounting makes set-up quick and easy
• Maximum flow rate of 550 litres per minute provides substantial capacity
• IP65 (ingress protection) certification indicates it's dust-tight and can withstand low-pressure jets of fluids
• Operating pressure range of 1.5 bar to 8 bar allows for a wide variety of industrial setups

Applications

• Automobile assembly plants
• Ventilation systems
• Agricultural equipment and machinery
• Manufacturing processes

Where should this unit be mounted?

This solenoid valve is highly versatile and can be easily mounted in any position. It's suitable for mounting on a terminal strip or an inline manifold, for example.

Festo VUVS

VUVS-LK20-M32C-AD-G18-1C1-S Specification Sheet

Brochure - Order guide for standalone valves
