VUVS-LK25-M32C-AD-G14-1B2-S, Festo 3/2 Solenoid Valve - Solenoid/Solenoid G 1/4 VUVS Series 24V dc, 8043217, Клапан

Festo Electrical Actuation Pneumatic Solenoid Valve, G 1/4, 24V DC - VUVS Series - VUVS-LK25-M32C-AD-G14-1B2-S

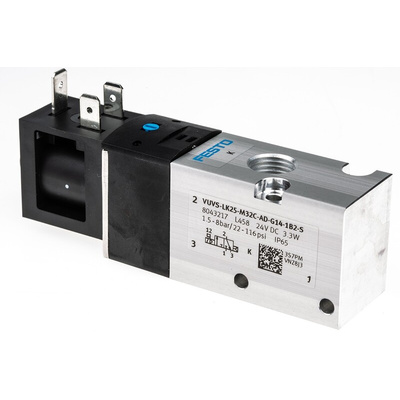

Regulate the flow of compressed air in your pneumatic setup with this 3/2 Festo solenoid valve. You can connect it via G 1/4 threading, so it's compatible with standard fixtures. The solenoid coil can be set to either open or close automatically via electric current, making it a versatile product that serves as a safety valve. It also comes with a manual override option, meaning you can physically push the detent to operate it. This type of three-port solenoid valve is designed for use in pneumatic devices like single-action cylinders, vacuums and pressure-release applications.

• Wide operating temperature range of -5°C to +50°C makes it suitable for extreme conditions
• Wrought aluminium alloy housing protects against rust damage
• Operating pressure range of 1.5 to 8 bar allows for use in heavy-duty pneumatic systems
• Air-spring reset for swift response
• Low power consumption of 3.3W for energy-efficient use

Application Information

• Air compressor units
• Factory automation
• Manufacturing
• Packaging equipment

How do I install this Festo VUVS series pneumatic solenoid valve?

This Festo solenoid valve is suitable for both through-hole and manifold-rail mounting, making it a versatile choice that's easy to dismount for maintenance or replacement.

Datasheet

VUVS-LK25-M32C-AD-G14-1B2-S Specification Sheet

Brochure - Order guide for standalone valves
