AMTE-M-LH-G14, Festo AMTE Brass, Bronze 10bar Pneumatic Silencer, Threaded, G 1/4 Male, Пневматический глушитель

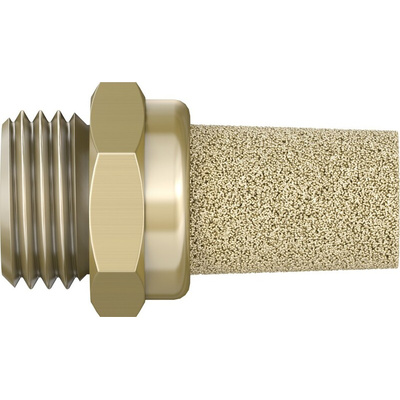

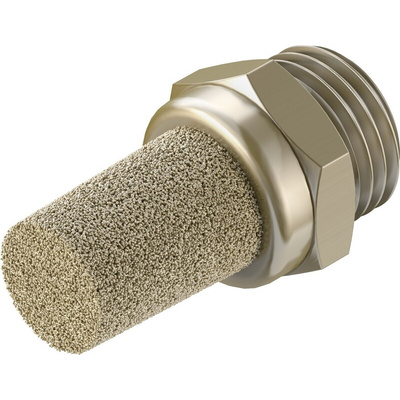

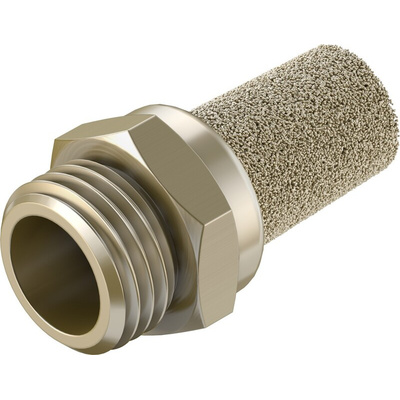

Festo Threaded Pneumatic Silencer, 10 Bar, G 1/4 Male - AMTE Series - AMTE-M-LH-G14

Reduce noise levels when expelling compressed air with this silencer from Festo. The component has a brass thread and bronze silencer body, so it's long-lasting and highly resistant to corrosion. A screw-in connector makes it quick and easy to attach the silencer to an exhaust. Silencers are often used in pneumatic applications to improve operator safety by reducing potentially dangerous high noise levels. This silencer cuts noise to a safe level of 83 dB(A), so you can use it in factories in areas where personnel are present.

Festo AMTE Brass, Bronze 10bar Pneumatic Silencer

• Operating pressure range of 0 to 10 bar
• Flow rate to atmosphere of 3,140 l/min
• Can operate with lubricated mediums
• G 1/4 male threaded inlet connection
• Weight of 13 g
• Minimum operating temperature of -10°C
• Maximum operating temperature of +80°C

Range Information

• The Festo AMTE range features pneumatic silencers with both long and short thread designs
• They're supplied with various connection methods, including spring clips and push-in connectors
• This range of metal silencers is suitable to use with compressed air

Festo metal AMTE series pneumatic silencers are designed to reduce noise levels from air exhaust in pneumatic systems and pipes. Acting as a muffler which is essential for reducing sound to safe decibel levels within industrial work environments and improving user comfort. AMTE exhaust silencers have the ability to reduce noise to levels below 88dbA.
The AMTE-M-LH-G14 is manufactured with a brass threaded body and bronze silencer insert which can be used in lubricated pneumatic systems.

• Bronze silencer insert
• Brass threaded plug
• Weight 13g
• Screw thread for simple connection

Festo Silencers

AMTE-M-LH-G14 Specification Sheet
