QSM-G1/8-6, Festo QS Series Straight Threaded Adaptor, G 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, 186265, Переходник

QSM Mini Push-in Fitting

The Quick Star QSM range offer a convenient mini push-in fitting system for compressed air and water with over 1000 types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Features and Benefits

• Mini size push-in fitting, ideal for confined spaces


• Maximum flexibility for each pneumatic fitting


• Effortless, quick and simple push-in installation


• Threaded to tube (hose) connection style for use in pneumatic applications


• Wide operating temperature range of -10 to +80°C


• Air pressure ranges of up to 14 bar


• Available with a variety of different thread and diameter connector sizes


• Robust, solid nickel-plated brass with high resistance to corrosion

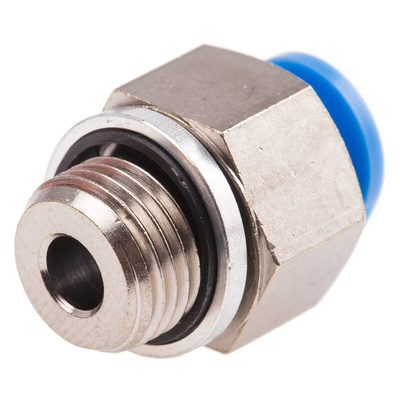

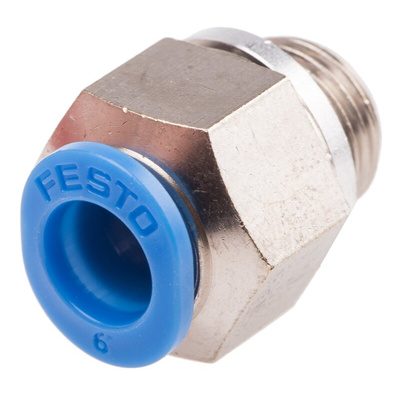

Push-in Fitting QSM-G1/8-6

• Corrosion resistance classification of 1 to protect against low corrosion stress


• Nominal tightening torque of 7Nm


• G1/8 male pneumatic connection


• The mini fitting is lightweight at 11g

Festo Push-in fittings and connectors QS

QSM-G1/8-6 Specification Sheet
